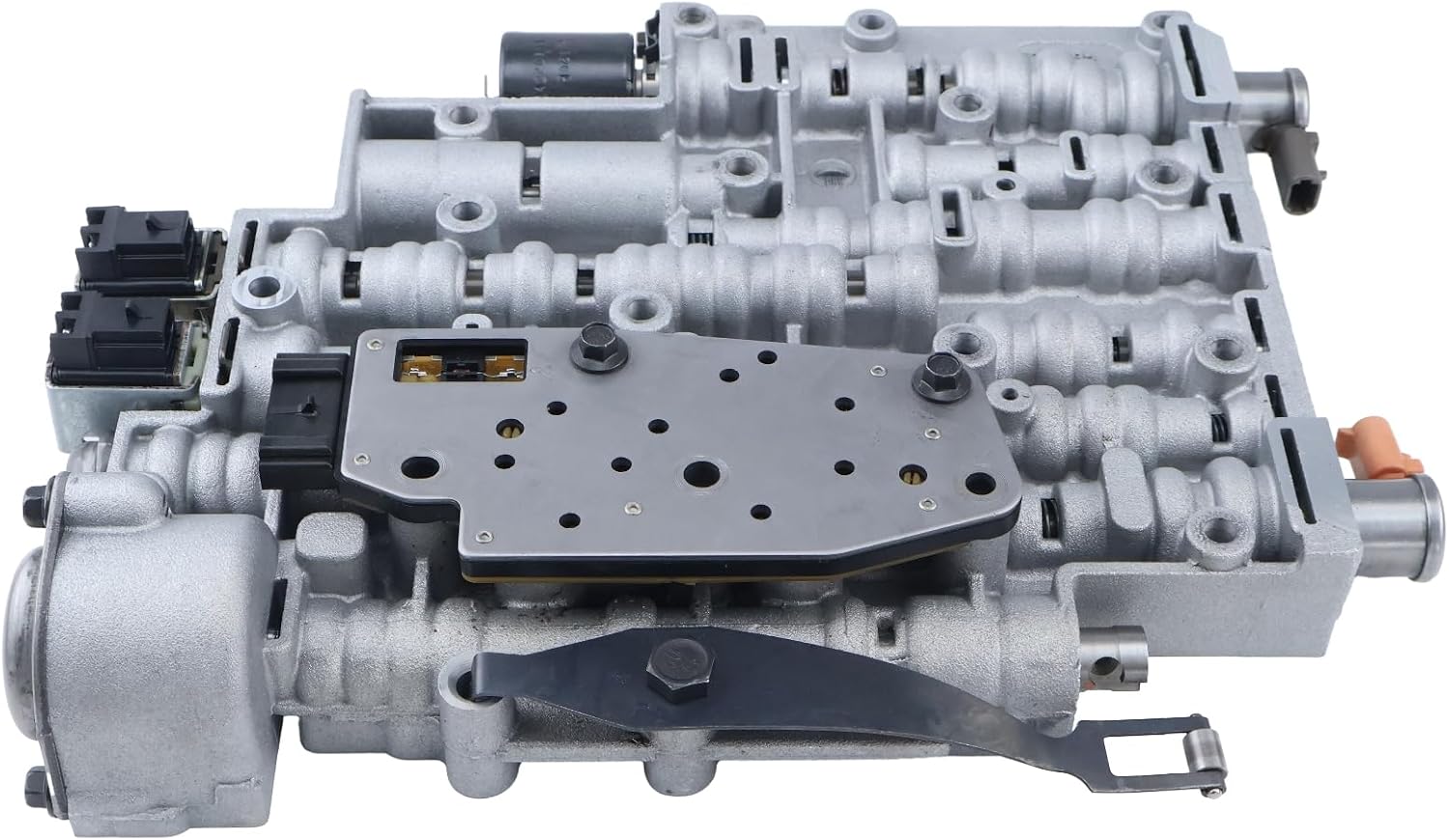

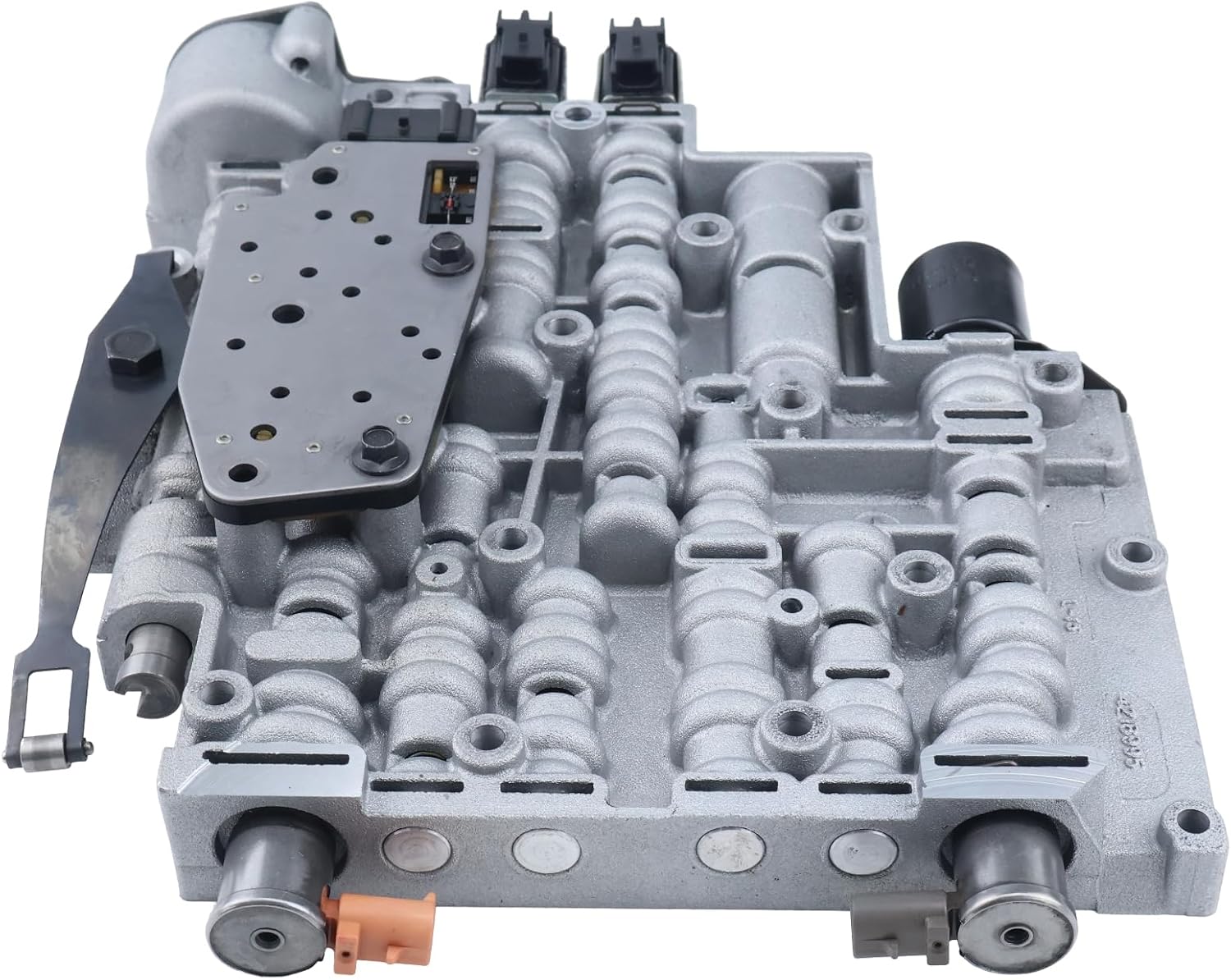

Complete 4L60E valve body assembly for 2003-2008 GM trucks and cars, also fitting 4L65E and 4L70E, ready to bolt on with no modification.
The 4L60E, 4L65E, and 4L70E share this same valve body across GM's 2003-2008 full-size truck, SUV, and performance car lineup, so a Silverado, Sierra, Tahoe, Suburban, Camaro, Pontiac GTO, or Chevrolet TrailBlazer SS with a flared 1-2 shift, a torque converter clutch that will not hold lockup, or a stored TCC or EPC code is very likely dealing with the same worn casting under the pan. This is a complete 2003-2008 valve body assembly, built with the casting, separator plate, and gaskets, ready to accept your original solenoids and wiring harness.
The 4L65E and 4L70E are not separate transmissions from an engineering standpoint; they are the 4L60E built with stronger internals for heavier-duty and higher-output applications. The 4L65E went behind the 2500-series half-tons, Suburban 2500, and Hummer H2, where the extra load called for a wider output shaft and tougher gearset. The 4L70E went behind the LS2-powered Pontiac GTO and Chevrolet TrailBlazer SS, where the extra power called for the same upgrade from a different direction. All three share the same valve body and hydraulic layout from 2003 forward, which is why one casting covers all of them.
The valve body is the hydraulic control center of the transmission. The pressure regulator and boost valves set main line pressure, the actuator feed limit valve meters pressure to the shift solenoids, and the 1-2, 2-3, and TCC circuits route fluid to the clutches, bands, and converter clutch on command from the computer. Every valve rides in a precision bore, and once that bore wears oval, fluid leaks past the valve instead of applying the clutch cleanly. That bore wear is the single biggest reason a 2003-2008 4L60E, 4L65E, or 4L70E gets diagnosed with a bad valve body rather than a bad clutch pack.
Pull codes and check the fluid before buying parts, since burnt fluid points at the clutches rather than the valve body. Our valve body wear guide covers the vacuum and flow tests a rebuilder uses to separate a worn bore from a good one, and our pressure regulator and boost valve guide covers the low line pressure symptoms specific to this casting.
This assembly fits the 4L60E, 4L65E, and 4L70E as built from 2003 through 2008. Compare the casting number and bolt pattern in the listing photos against the unit you pull before ordering, since GM made running changes within this span, and transfer your original solenoids, wiring harness, and TCC solenoid over to the new unit during the swap. The complete lineup of 4L60E-family valve bodies we carry by year is on the 4L60E parts page.
Drop the pan, unbolt the old valve body, and transfer the solenoids, harness, and spacer plate over per the service procedure for your year, keeping the check balls oriented exactly as they came out. Torque the valve body bolts evenly in sequence so the casting does not distort against the separator plate, and check line pressure before putting the vehicle back in service. Replace the fluid and filter with a pan, filter, and gasket kit and fresh Dexron VI at the same time, and if the solenoids you are transferring are original to the truck, consider a fresh 2003-and-later solenoid set instead of reusing worn ones. Let the computer relearn its shift adapts over the first several drives after the swap.
| Fits transmissions | |
| Fits years | |
| Sold as | |
| Installation | |
| Finish | |
| Quantity |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
No. From 2003 forward they share the same valve body casting and hydraulic layout. GM strengthened other internals, like the output shaft and gearset, for the 4L65E and 4L70E, not the valve body.
No. It is the casting, separator plate, and gaskets. You transfer your original solenoids, TCC solenoid, and harness onto it during the swap.
If the cause is worn TCC apply circuitry inside the valve body, yes. If the torque converter itself or a solenoid has failed electrically, those need separate attention.
Performance applications built on the LS2, including the Pontiac GTO and Chevrolet TrailBlazer SS.
A pan, filter, and gasket kit, fresh Dexron VI fluid, and a solenoid set if the originals you are transferring are high mileage.
No. The computer relearns its shift adapts over the first several drives on its own.
