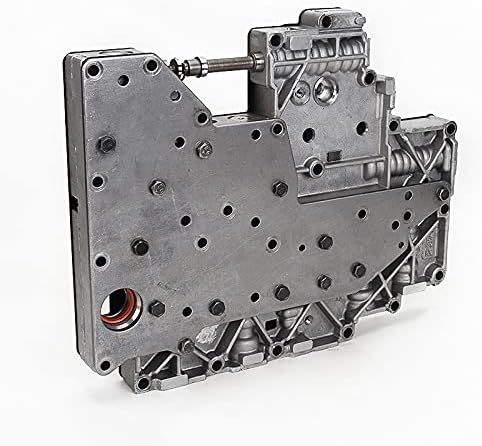

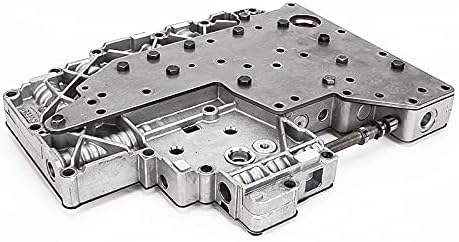

Replacement 4R70W valve body assembly for Ford F150 and Explorer 2001-2008, also covering 4R75W and 4R75E, when shifts go erratic or drop out.
This is a complete valve body assembly covering three closely related Ford automatics - the 4R70W, the heavier-duty 4R75W, and the electronically shifted 4R75E - as installed behind the 4.6L and 5.4L modular V8 in the Ford F-150 and Explorer from 2001 through 2008. If your truck or SUV has developed a 3-4 flare, a harsh or delayed 1-2 shift, soft engagement into drive, slipping under load once the fluid is hot, or overdrive dropping out entirely, this assembly addresses the wear that causes all four.
The 4R70W is the wide-ratio development of Ford's AODE transmission, and the 4R75W and 4R75E share its hydraulic core while adding higher torque capacity and, on the 4R75E, additional electronic shift strategy. In all three, the valve body is a machined casting full of precision bores and spool valves that routes main line pressure to the clutch packs and bands and carries the shift and pressure-control solenoids the computer uses to time each shift. These units fail from wear, not breakage: the bores that carry the main pressure regulator and the boost valve wear oval over time, the separator plate frets around the high-flow feed holes, and the solenoid regulator valve starts to stick in its bore.
Line pressure that reads fine cold and falls off once the unit is hot is the classic cross-leak signature of a worn valve body bore. Once a bore has worn this way, no amount of fresh fluid, filters, or solenoid swapping restores the pressure - the body has to be reamed and sleeved or replaced outright, and on a work truck that needs to get back on the road, replacing it is the faster call.
Our 4R70W/4R75W valve body testing guide covers the vacuum-test procedure for confirming which bore has worn rather than guessing from symptoms alone, and our delayed engagement guide is worth checking first if soft engagement into drive is the main complaint, since that symptom has more than one possible cause. If the failure that put you here was specifically a 3-4 clutch burn-up, read our 3-4 clutch failure guide before you close the job - a new valve body will not cover for a clutch pack that already failed.
This assembly is listed for the F-150 and Explorer, 2001-2008, but the same casting family also turns up under the Expedition, Econoline, Crown Victoria, and Mustang of that era behind the 4.6L and 5.4L - check your unit against the vehicle list before you order, since the 4R70W, 4R75W and 4R75E are not universally interchangeable at every revision. See the full 4R70W/4R75W parts hub for narrower year-specific listings if yours is a tighter match.
This is a pan-down job with the transmission still in the vehicle. Drop the pan and drain it, pull the filter, unplug the internal wiring harness at the solenoids, remove the valve body bolts, and lower the body while keeping the manual valve engaged with the pin on the shift lever. Watch the check balls - they sit in pockets in both the case and the body, and one that stays behind or falls out gives you a brand-new complaint after the job is done. Fit a new filter and pan gasket from our shift solenoid, filter and gasket kit at the same time, torque the body bolts down evenly in a crossing pattern to spec, then refill with Mercon V ATF and run the adaptive relearn before road-testing. The assembly ships as one machined unit, about 11 pounds boxed. Inspect the mating face and separator plate before install, and if your old unit came out with a burnt 3-4 clutch or metal in the pan, address that with our 4R70W overhaul kit first - a new valve body will not cover for a failed clutch pack.
| Transmissions | |
| Vehicles listed | |
| Item weight | |
| Package dimensions | |
| Exterior finish | |
| Sold as |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Yes, this assembly covers the 4R70W, the heavier-duty 4R75W, and the electronically shifted 4R75E, since all three share the same hydraulic valve body core. Confirm which of the three your vehicle has and match casting and connector before ordering.
This listing is for the F-150 and Explorer, 2001-2008, but the same casting family also appears under the Expedition, Econoline, Crown Victoria, and Mustang of that era behind the 4.6L and 5.4L modular V8. Check your specific unit against the vehicle list before ordering.
Once a bore has worn oval, fluid, filters, and solenoid swaps will not bring the pressure back - it has to be reamed and sleeved or the unit replaced outright. Replacing the assembly is the faster repair, especially on a vehicle that needs to get back on the road.
The check balls sit in pockets in both the transmission case and the valve body, and they can fall out or stay behind as you lower the body off the case. Keep the assembly level, watch each pocket as you separate the parts, and confirm every ball is seated before torquing the new unit down.
No. A valve body replacement addresses the hydraulic control side of a 3-4 flare, but if the clutch pack itself already burned up, the valve body will not cover for it. Inspect for metal in the pan and address the clutch pack with an overhaul kit before closing the job.
Yes. Refill with Mercon V ATF, clear stored codes, and run the transmission control module's adaptive relearn drive cycle before a normal road test rather than driving it as-is.
