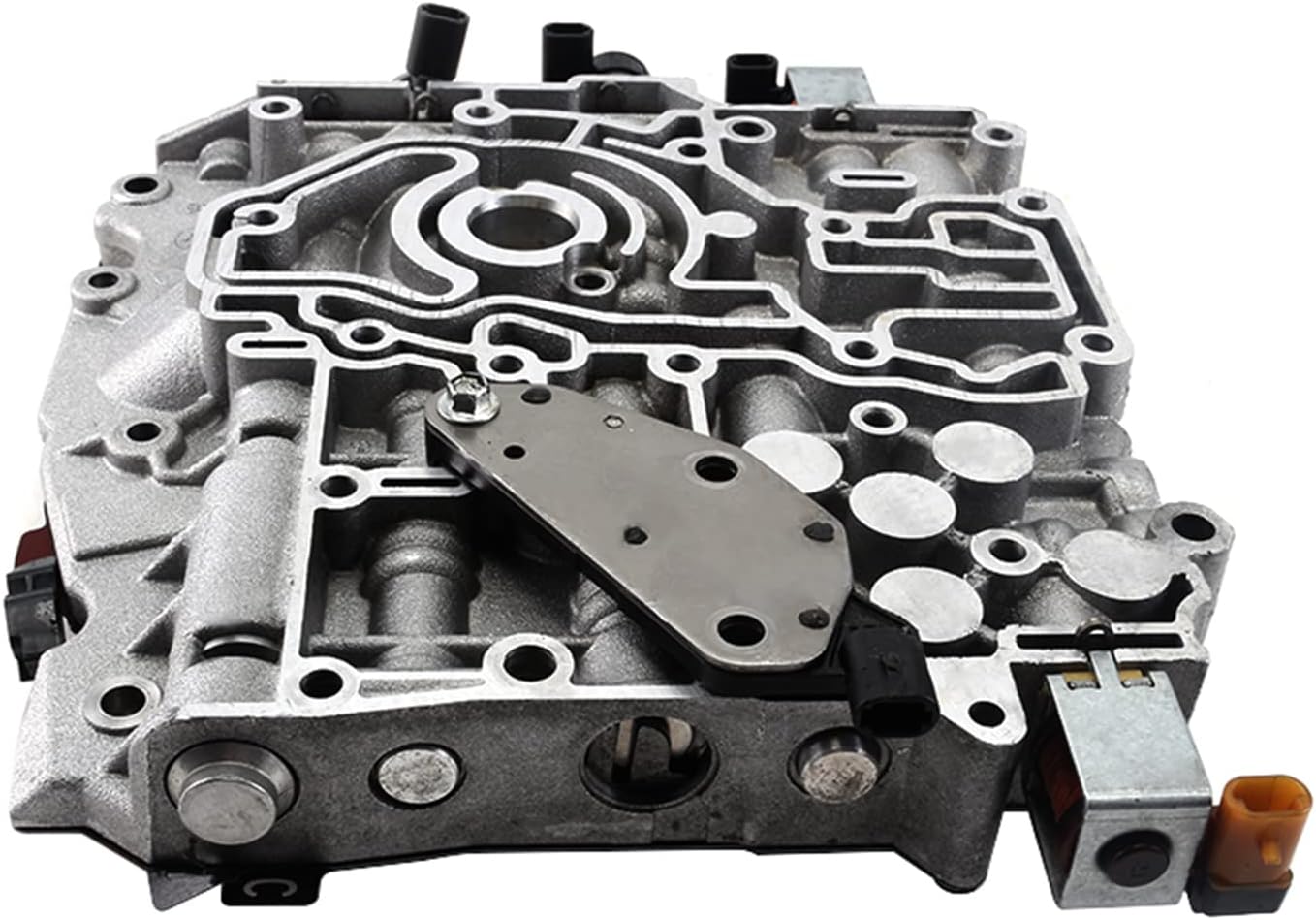

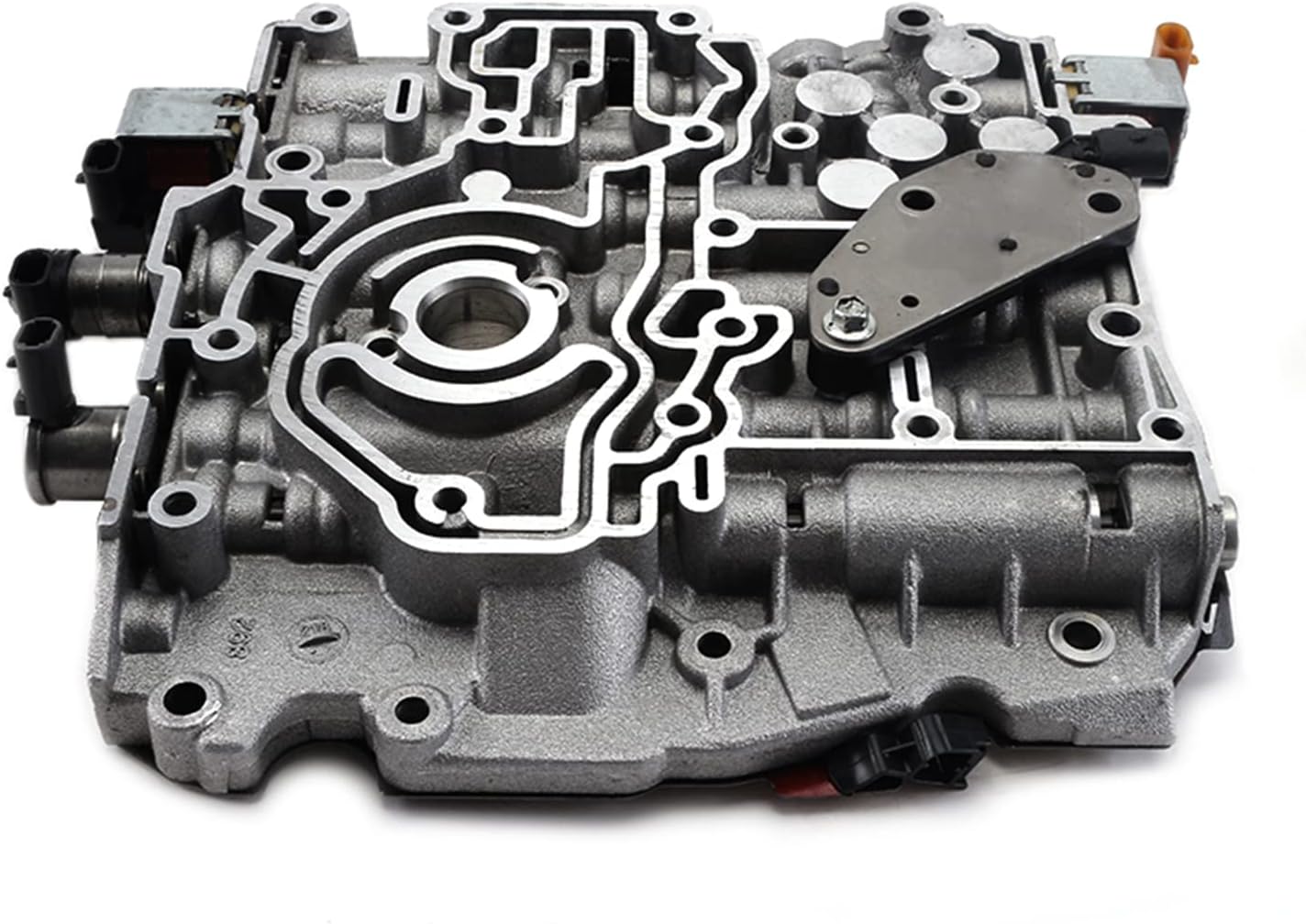

4T65E Transmission Valve Body for GM Front-Wheel Drive

Remanufactured valve body for the GM 4T65E, the four-speed electronic transaxle GM ran in front-wheel-drive Buick, Pontiac, Chevrolet and Oldsmobile cars. This is the 2003-and-newer casting. GM revised the valve body and separator plate partway through the 4T65E production run, so a 2003-up unit will not interchange with an early body - check your casting and build date before ordering.

The valve body is the hydraulic brain of the transaxle. It lives under the side pan and carries the shift valves, the pressure regulator, the actuator feed limit valve and the TCC regulator, plus the checkballs that route apply oil. Aluminum bores wear oval around those valves after 150,000 miles of hot fluid and metal in suspension. Once a bore is worn the valve leaks crossways instead of stroking clean, and you get the symptoms 4T65E owners describe: a bang on the 1-2 shift, a soft or slipping 2-3, torque converter clutch shudder at light throttle, delayed engagement into drive when cold, and in bad cases no third or fourth at all. Those are hydraulic faults, not electrical ones, which is why swapping shift solenoids on a worn body fixes nothing.

Replacing the body is a pan-off job with the transaxle in the car on most applications. Drop the side pan, pull the filter, unbolt the body and lower it straight down so the checkballs stay put - lay the old body face up on the bench and photograph the ball locations before you separate anything. Transfer the manual valve link to the detent lever, set the new body up on the case with a new separator plate gasket set, and run the bolts down in a crossing pattern so the plate does not pinch. Finish with a new filter, a new pan gasket, and fresh DEXRON fluid - putting a rebuilt body back under contaminated oil is how the next one wears out.

Typical applications for the 4T65E include Buick LeSabre, Park Avenue, Regal and Lucerne, Pontiac Grand Prix, Bonneville and Montana, Chevrolet Impala, Monte Carlo and Venture, and Oldsmobile Silhouette and Intrigue. Verify the transaxle tag reads 4T65E and that the vehicle is 2003 or newer before you order.
