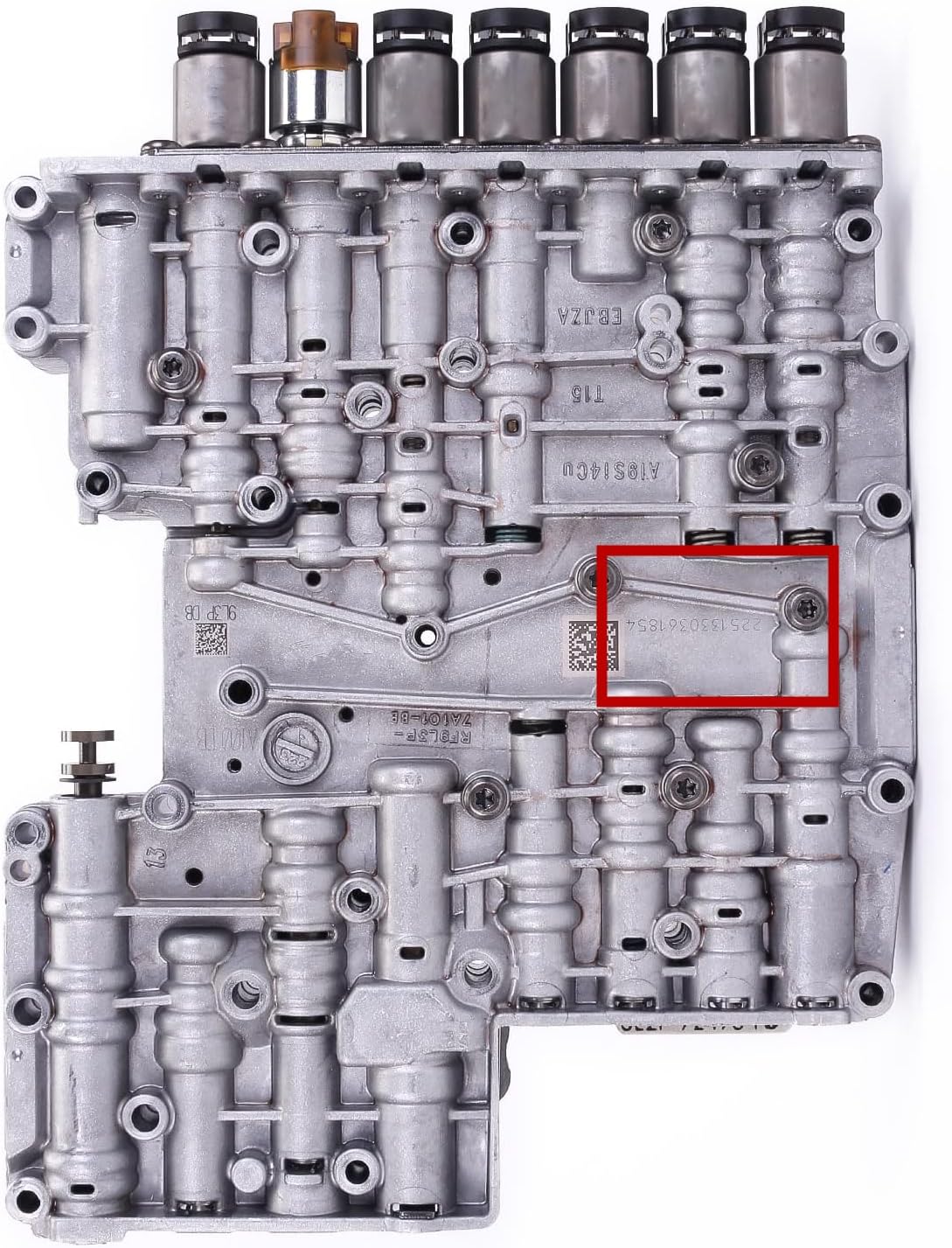

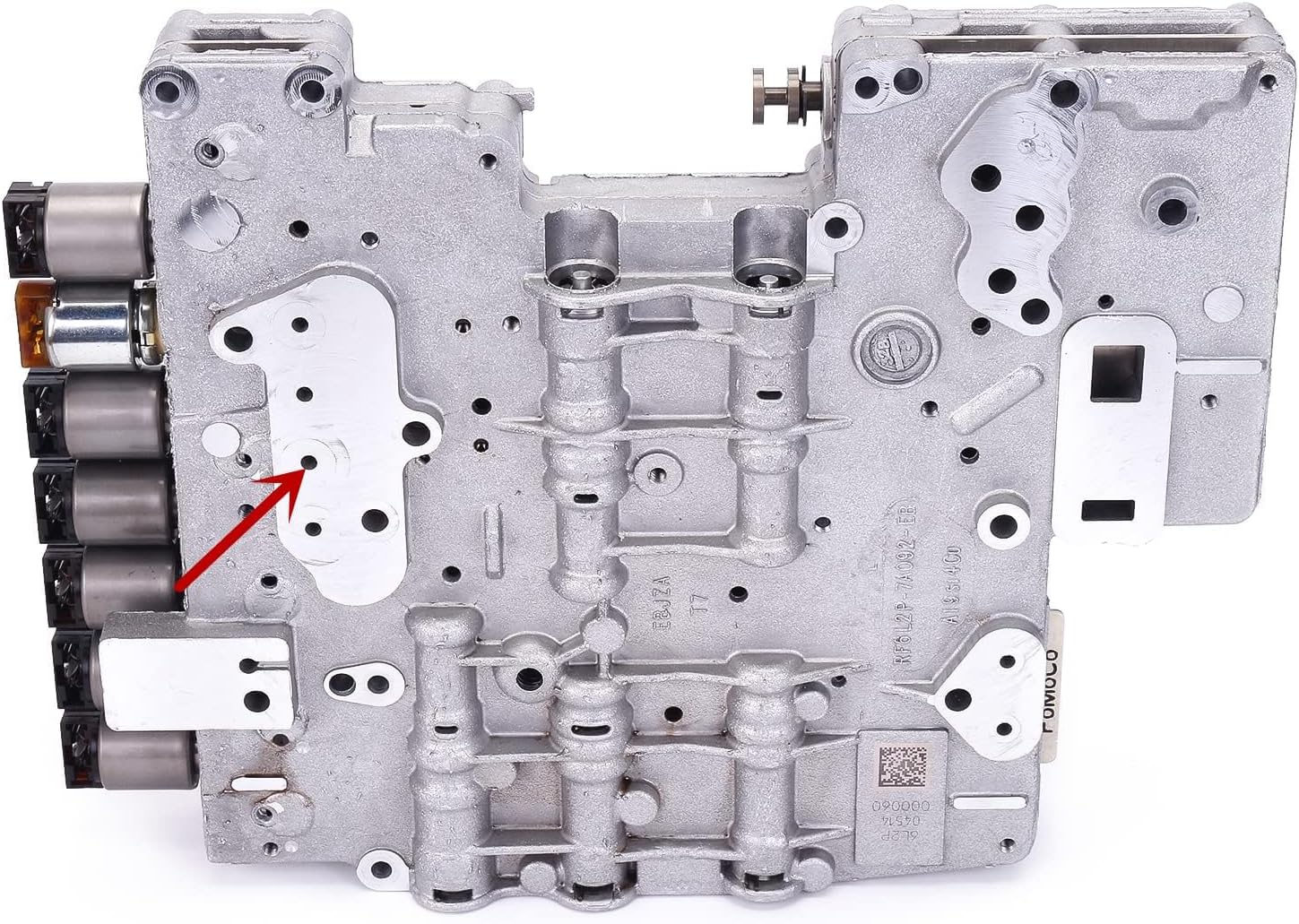

Complete 6R80 valve body with solenoids installed for 2007-2010 Ford F150, replacing 8L3P-7A101-BB for harsh shifts, slipping and solenoid codes.
A 2007-2010 Ford F-150 that bangs into drive or reverse, flares between gears, or throws a shift solenoid or pressure control code is usually pointing at the valve body, not the clutches. This is a complete 6R80 valve body for the early design used on these trucks, supplied with the solenoid pack already mounted and installed as one tested unit rather than a bare casting you have to build up yourself.
The 6R80 is Ford's six-speed electronic automatic, and the valve body is its hydraulic brain. Line pressure from the pump routes through the valve body's bores and spool valves to apply each clutch pack and band, while the mounted solenoid pack lets the transmission control module time every shift and manage torque converter clutch apply. When the bores wear or a solenoid sticks, the computer can still send the right command but the hydraulic side cannot carry it out cleanly, which is why swapping the whole assembly is usually more reliable than chasing one circuit.
Our 6R80 valve body problems and testing guide covers how a shop traces each of those symptoms back to a specific valve or solenoid before replacing anything.
Pull codes and check the fluid condition first. Burnt or dark fluid usually means clutch material is already circulating through the valve body, and a new valve body alone will not stop a slip that started as clutch wear. Our 6R80 valve body wear and bench fix guide walks through the bore and solenoid checks a shop runs to separate a hydraulic valve body problem from a clutch problem.
This unit is built for the early 6R80 used in 2007-2010 F-150 trucks and carries the 8L3P-7A101-BB service reference. Ford changed the 6R80's shift solenoid design in November 2010 and revised the valve body casting again for 2015-and-later trucks, so a later unit will not drop in correctly on these years. Confirm your build date and the part number on your old unit before ordering, or send your VIN and we will confirm the application. Every 6R80 valve body we carry by year range is listed on the 6R80 parts page.
Drop the pan and filter, unplug the internal wiring harness, then remove the valve body bolts, noting their lengths and positions before lowering the unit straight down so the manual valve clears the detent lever. Check the separator plate and checkballs on the case side, seat the new valve body, and torque the bolts in the factory sequence. Refill with Mercon LV and check the level hot. Because the 6R80 is electronically controlled, the transmission control module needs to relearn shift adapts over the first several drives; skipping that step is the most common reason a freshly installed valve body still shifts poorly. If your old shift kit or solenoids are original and showing age, pairing this valve body with a 6R80 shift kit or a full 6R80 overhaul kit addresses the other common wear points on this generation at the same time.
| Transmission | Ford 6R80 (early design) |
| Fitment | 2007-2010 Ford F150 |
| Service reference | 8L3P-7A101-BB |
| Includes | Valve body assembly with solenoids |
| Material | Metal |
| Weight | 14.1 lb |
| Fluid | Mercon LV |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Yes, the solenoid pack is already mounted on the valve body, so it goes in as one tested assembly rather than a bare casting you have to build up.
This is the early-design valve body carrying the 8L3P-7A101-BB service reference. Ford changed the shift solenoid design in November 2010 and the casting again for 2015-and-later trucks, so confirm your build date and part number before ordering.
Mercon LV. Refill after the valve body swap and check the level hot.
No reflash is needed, but the transmission control module needs to relearn shift adapts over the first several drives. A scan tool can speed that up, but driving it normally works too.
Not on its own. Dark or burnt fluid usually means clutch material is already circulating, and the transmission needs more than a valve body. Check our wear and bench fix guide to separate a hydraulic problem from a clutch problem before you order.
A filter and pan gasket at minimum. If the shift kit or solenoids are original to the truck, replacing those alongside the valve body addresses the rest of the common 6R80 wear points in one job.
