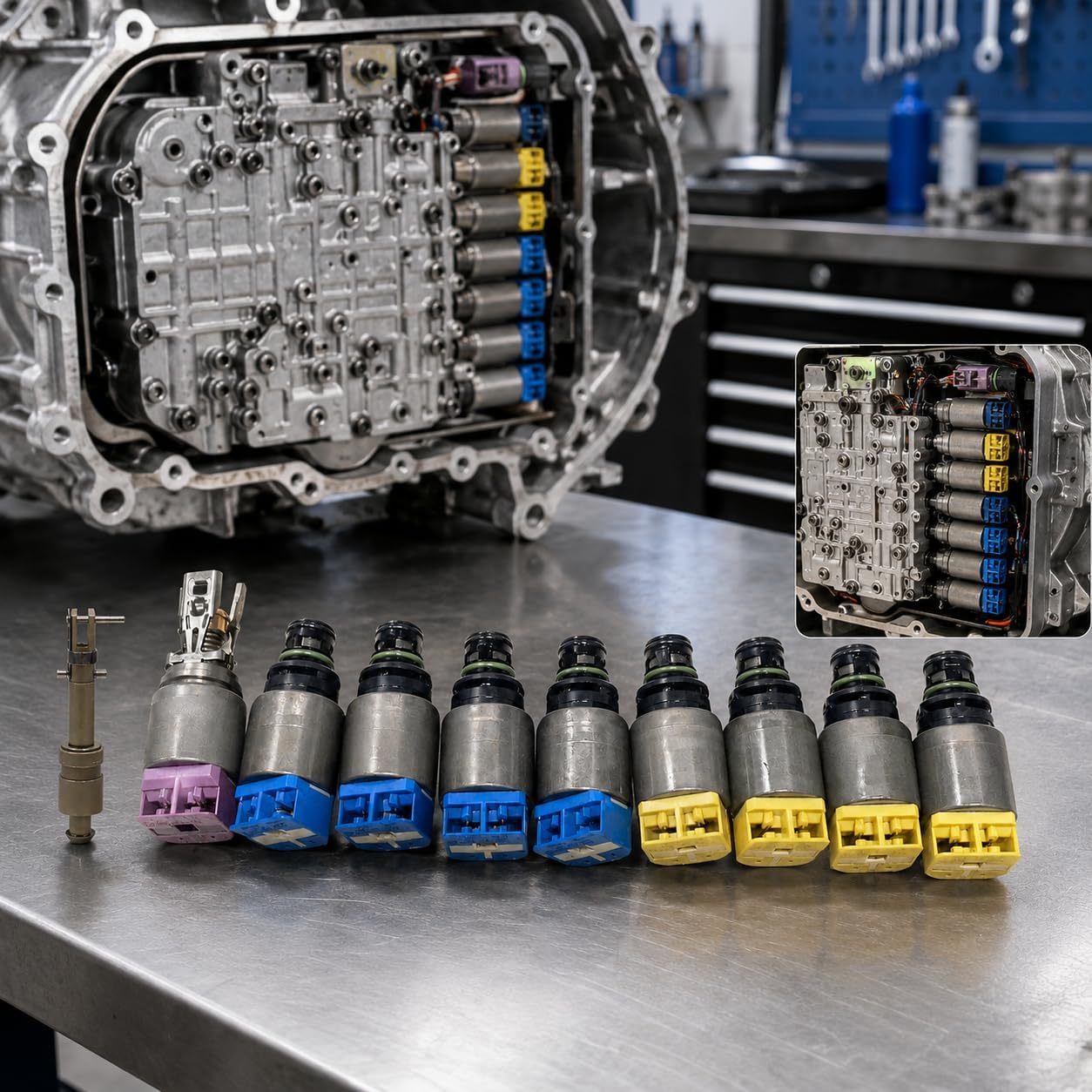

Ten-piece valve body solenoid set for the ZF 8HP75 eight-speed, covering shift, line pressure and converter lock-up control on Ram 1500 and Wrangler.
The ZF 8HP75 is the eight-speed automatic Ram badges as the 850RE in the 1500 and Wrangler, and that BMW runs in the X3 and X5. Instead of one shift solenoid per gear the way an older four-speed worked, the 8HP75 uses a bank of pressure-regulating solenoids mounted on the valve body inside the mechatronic unit, and each one meters line pressure to a specific clutch pack or to the torque converter lock-up circuit. This is a complete set of all ten of those solenoids, which is the normal repair rather than replacing one at a time - they all see the same fluid, the same heat cycles and the same mileage, so when one has drifted out of spec the rest are usually not far behind.
Each solenoid in the set sits in its own bore on the valve body and responds to a pulse-width signal from the transmission control module, opening or closing a hydraulic circuit by a precise amount rather than just switching on or off. That is how the 8HP75 manages eight forward ratios and converter lock-up with a compact valve body: the TCM is doing continuous pressure control through these solenoids instead of triggering simple shift valves. A solenoid whose bore has worn or whose winding resistance has drifted no longer meters pressure accurately, and the transmission's shift quality and converter lock-up both degrade as a direct result.
These are the classic signs of a solenoid bore or winding problem rather than a mechanical failure inside the transmission, and they are worth confirming before you buy: check the pan for metal debris and the fluid for a burnt smell first, since clean fluid with no debris is what points toward the solenoid pack rather than internal clutch damage. Our ZF8HP shift solenoid symptoms guide and pressure control solenoid symptoms guide both walk through the shift pattern each solenoid affects, so you can match your specific complaint - harsh 2-3, no lock-up, delayed engagement - to the circuit most likely responsible before replacing the whole set.

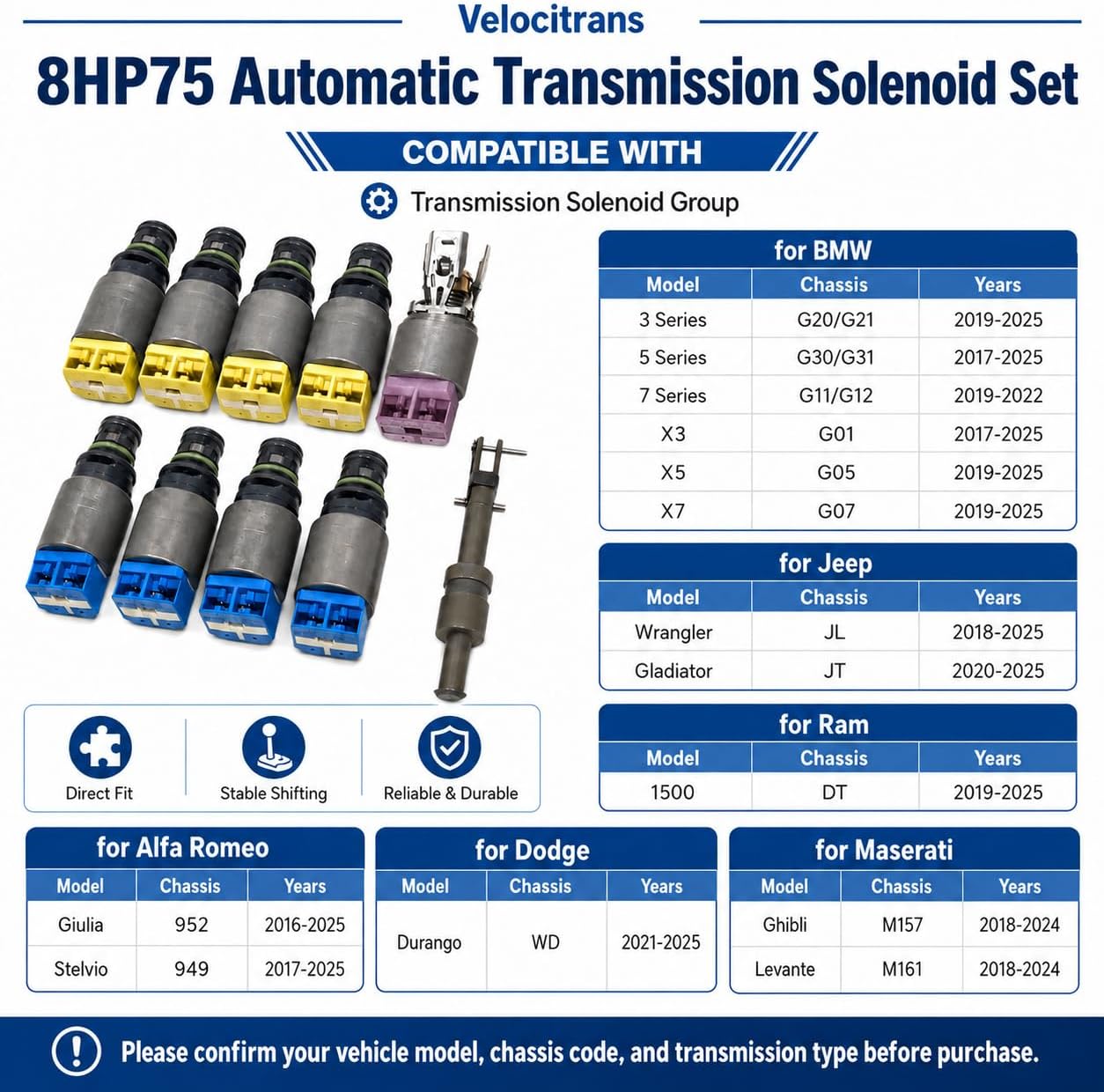

Fits vehicles equipped with the ZF 8HP75: Ram 1500 2019-2025, Jeep Wrangler 2018-2025, BMW X3 2017-2025 and BMW X5 2019-2025. Confirm your transmission tag and connector style against the listing photos before ordering, since the 8HP solenoids look similar across the family but are not interchangeable between circuits - a swapped pair will throw shift faults on the first road test even though every solenoid tested good individually. Browse the ZF 8HP parts collection for the matching valve body or fluid service kit for your application.
This set installs with the valve body out of the vehicle and the mechatronic separated, so budget for a pan drop, harness disconnect and bench time rather than a quick in-car swap. Note the position of every solenoid before you pull anything, fit new sealing rings, and torque the retainers to the factory spec rather than by feel so you do not pinch the internal harness when the valve body goes back up. Change the fluid and filter at the same time - our ZF 8HP70 pan, filter and fluid service kit covers this family - and finish with a fluid fill done by temperature plus an adaptive relearn through a scan tool that can talk to the TCM; skip the relearn and the first few hundred miles will shift badly even with good solenoids installed. If your truck runs hot in traffic, pair the job with a transmission cooler and inspect the pressure control solenoid individually if only one circuit is acting up.
| Transmission | |
| Set Contents | |
| Construction | |
| Fitment | |
| Item Weight | |
| Warranty |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Ten - the complete solenoid bank mounted on the 8HP75 valve body, covering shift, line pressure and torque converter lock-up control.
Ram 1500 2019-2025, Jeep Wrangler 2018-2025, BMW X3 2017-2025 and BMW X5 2019-2025. Ram and Jeep badge it as the 850RE.
Harsh or flared 1-2 and 2-3 shifts, a shudder at cruise when the converter tries to lock up, delayed engagement into drive, or limp mode with a stored pressure or solenoid code.
The set is the standard repair since all ten see the same heat and mileage, but if only one circuit is misbehaving and the others test good, a single solenoid replacement is possible - see our shift solenoid symptoms guide to match the circuit.
Replace the fluid and filter, fit new sealing rings, torque the retainers to spec, and run the TCM's adaptive relearn with a scan tool - skipping the relearn leaves shift quality poor even with good solenoids.
ZF LifeGuard 8 ATF, filled by the temperature and overflow procedure rather than a dipstick check.
