AOD valve body for 1980-1993, remanufactured and ready to install. Ships fast from the USA.
A Ford AOD that shifts differently from one drive to the next, hesitates a beat before it takes off from a stop, or has started dragging the overdrive band on the highway is usually telling you the valve body has worn past the point a fluid change will fix. This is a remanufactured valve body for the 1980-1993 AOD, built with the running updates Ford and the aftermarket added over that production span and bench-tested before it ships, so you install a verified unit instead of reusing a worn core.
The AOD has no shift solenoids - every shift point and every pound of line pressure is set hydraulically inside the valve body. Beyond the throttle valve and boost valve that most AOD writeups focus on, the case also carries a set of governor and accumulator circuit end plugs that seal the oil passages feeding those circuits. Ford changed the end plug design partway through the AOD's run, and on either style, a plug that has started to leak lets oil bleed out of a circuit it should be holding, which throws off shift timing in a way that is inconsistent rather than constant.
A shop confirms valve body wear on a bench rather than by guessing: Sonnax's own rebuilding reference puts a healthy valve-to-bore clearance under .002 in., which should pull 24-26 in-Hg on a vacuum test of a given circuit; a circuit that only pulls 19 in-Hg or less has excessive clearance and is leaking oil it should be holding. The same reference calls for a wet air test under 30 psi to confirm the check balls are seating. If your AOD is showing inconsistent shift feel or delayed engagement and the fluid itself is in good shape, that bench test is what separates a valve body problem from a clutch or band problem before you spend money.

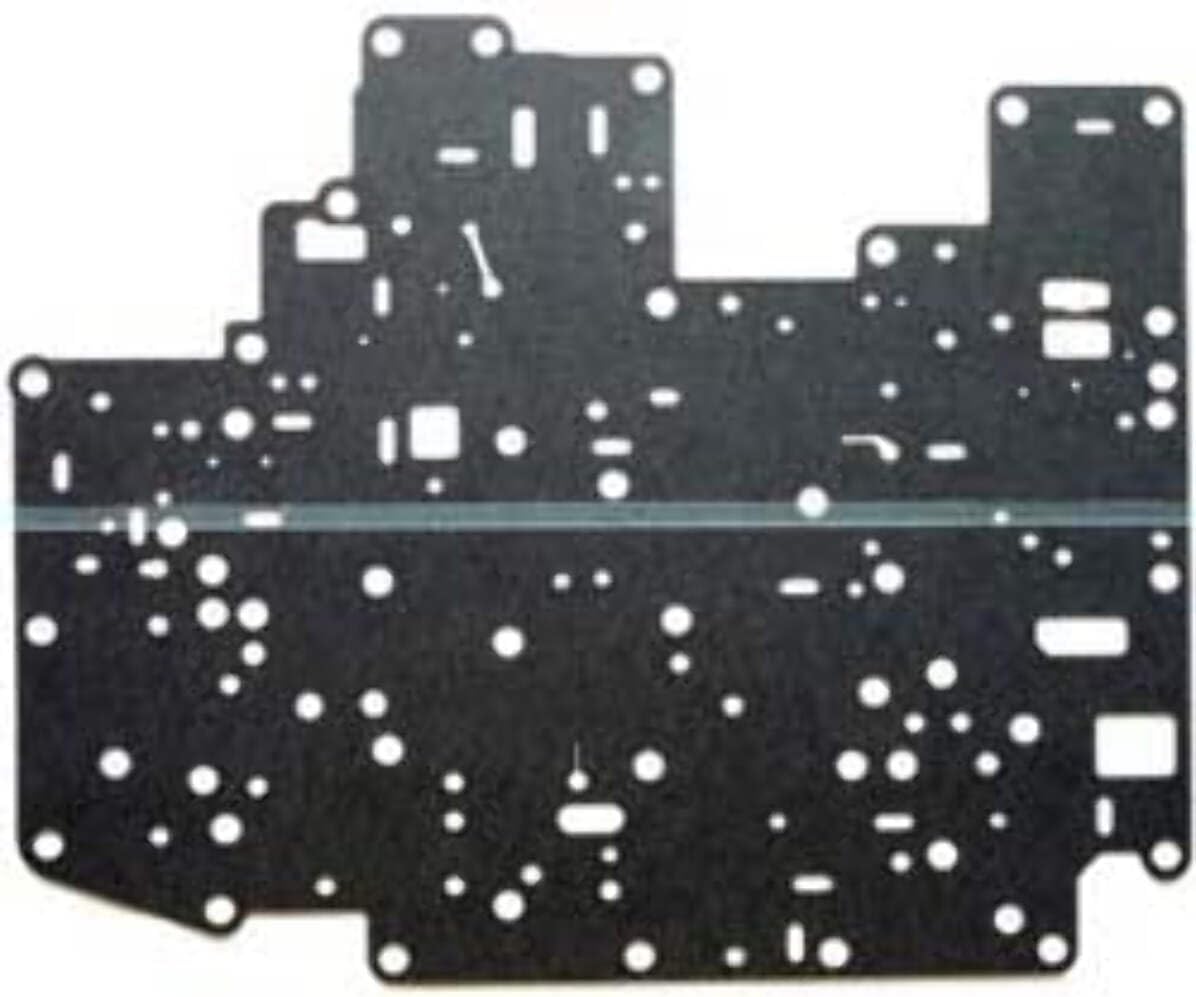

This valve body is built for the AOD across its full 1980-1993 production run, used in the Ford F-150, Bronco, Mustang, Crown Victoria, Thunderbird and Lincoln Town Car. Ford split the end plug design at roughly the middle of this run, so match your old unit's plug style and separator plate against the listing photos before ordering, or send your year and application and we will confirm. Our AOD valve body symptoms and testing guide covers the bench checks above in more depth, and the full AOD parts collection has everything else this transmission commonly needs.
Support the valve body as you pull the last bolts so the separator plate and check balls don't fall out of position, and torque the bolts back down in the factory sequence rather than corner to corner so the plate seats evenly. Refill with Mercon ATF, and if the old valve body had been leaking pressure for a while, inspect the overdrive band and forward clutch for the drag-related wear described above - our AOD master rebuild kit with clutches and band covers both if either shows it. The AOD's case and valve body are awkward to support safely on a bench by hand; our AOD holding fixture keeps the case steady through the whole R&R. A worn or fraying kickdown cable is also worth checking at the same time, since a bad TV signal will make even a good valve body shift wrong - see our AOD fluid leak guide if you're also chasing a leak while it's apart, and the AOD kickdown cable kit if the old one is stretched.
| Transmission | AOD |
| Year Range | 1980-1993 |
| Condition | Remanufactured / updated |
| Shipping | Ships from the USA |
It means the unit was rebuilt on the correct running changes Ford made across the 1980-1993 AOD production run, rather than just cleaned and reused as-is, and it was bench-tested before it shipped.
That inconsistency usually points to a leaking governor or accumulator circuit end plug rather than a steady mechanical wear problem. Oil bleeding out of a circuit it should be holding produces shift feel that varies instead of a constant, repeatable fault.
A bench vacuum test is the standard check: a healthy circuit pulls 24-26 in-Hg, and anything at 19 in-Hg or less has excessive bore or plug clearance. A wet air test under 30 psi confirms whether the check balls are seating. Our AOD valve body symptoms guide walks through both tests.
It's built for the full 1980-1993 production run across the F-150, Bronco, Mustang, Crown Victoria, Thunderbird and Lincoln Town Car, but Ford changed the end plug design partway through that span. Match your old unit's plug style and separator plate before ordering, or send your year and application.
If the old unit had been leaking circuit pressure for a while, check the overdrive band and forward clutch for drag-related wear, and check the kickdown cable, since a bad TV signal will make even a correctly built valve body shift wrong.
Mercon ATF.
