Everything to overhaul a 1980-93 Ford AOD in one box: gasket and seal kit, direct, intermediate and reverse frictions, overdrive band, pump bushing and filter.
A worn Ford AOD usually tells you three ways: overdrive slips or flares, engagement into Drive or Reverse gets slow and soft, and fluid starts showing up under the bellhousing. This master kit is built for a full overhaul of the 1980-1993 AOD found in the F-150, Bronco, Mustang, Crown Victoria, Grand Marquis, Thunderbird and Lincoln Town Car. It combines the gasket and seal overhaul set with direct, intermediate and reverse friction plates, a new overdrive band, a front pump bushing and the pan filter.
The AOD is a four-speed, rear-wheel-drive overdrive automatic controlled entirely by hydraulics and a throttle valve (TV) linkage. There is no computer to compensate for wear. The overdrive band holds in second and fourth gear, the intermediate clutch works with a one-way clutch for second, the direct clutch carries third and fourth, and the reverse clutch applies in Reverse. Every one of those packs and the band are applied by fluid pressure that the pump makes and the seals hold.
That is why an AOD overhaul is mostly a soft-parts job done right. Hardened seals cost apply pressure, a worn pump bushing lets the converter hub wobble and drops pump volume, and once pressure falls the band and direct clutch start to slip and burn. Sonnax lists direct clutch failure, overdrive band failure, excess converter hub-to-bushing clearance and low pump volume among the AOD's documented problem areas.
Check TV linkage adjustment first. A loose or misadjusted TV rod or cable lowers line pressure and is the single most common way AODs burn the overdrive band and direct clutch, so a rebuild without fixing it will fail again. Then pull the pan: clutch material and band lining in the filter mean the unit needs to come apart. Our AOD common problems and fixes guide covers each failure, and AOD delayed engagement follows Ford's diagnosis chart step by step.
This kit fits Ford AOD transmissions from 1980 through 1993 with the two-wheel-drive filter. It is not for the electronically controlled AODE or 4R70W that followed. Some of the friction plates are shared with those later units, but the gasket set and filter are for the early AOD only. If your truck was built near a changeover, check the transmission ID tag or send us the year and VIN before ordering. All AOD parts we carry are on the Ford AOD parts page.
Steel plates are not included. Reuse the steels only if they are flat and show no heat bluing.
For a realistic look at parts and labor on this job, see AOD rebuild cost.
| Fits | |
| Overhaul Kit | |
| Direct Clutch Frictions | |
| Intermediate Clutch Frictions | |
| Reverse Clutch Frictions | |

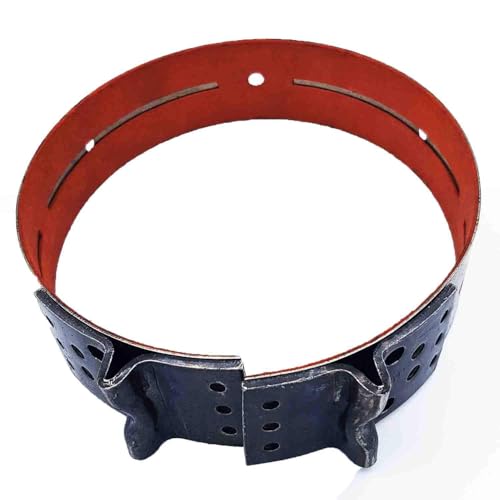

| Band | |
| Pump Bushing | |

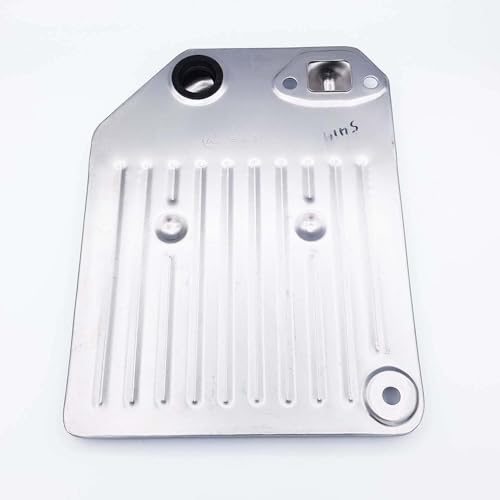

| Filter | |
| Steel Plates | |
| Condition |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
No. It is built for the 1980-1993 hydraulic AOD. Some frictions interchange with later units, but the gasket set and filter are AOD-specific.
No. The kit has frictions, the overdrive band, the pump bushing, the filter and the gasket and seal set. Inspect your steels; replace any that are warped, scored or blued.
The most common cause is a misadjusted or broken TV rod or cable, which drops line pressure so the band and direct clutch slip. Fix the TV setting during the rebuild or the new band will fail the same way.
Fill with Mercon-type automatic transmission fluid. Flush the cooler and lines before filling so old debris does not go straight into the new clutches.
The listing includes the overdrive band only. Inspect the reverse band during teardown and order one separately if its lining is worn or burned.
