Grade A black granite reference surface, 18 by 12 by 3 inches, flat to plus or minus .000050 inch for checking valve bodies, separator plates and case surfaces.

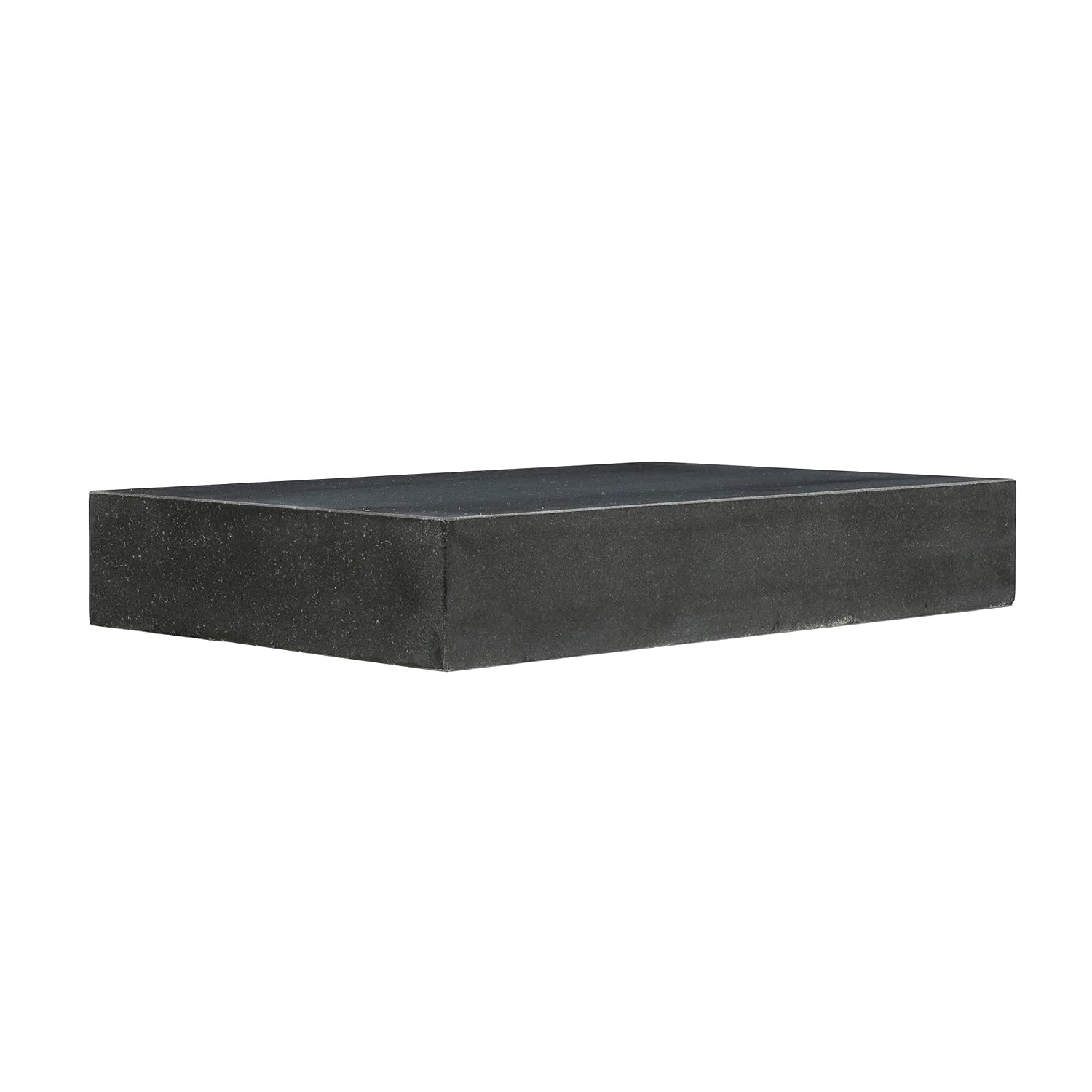

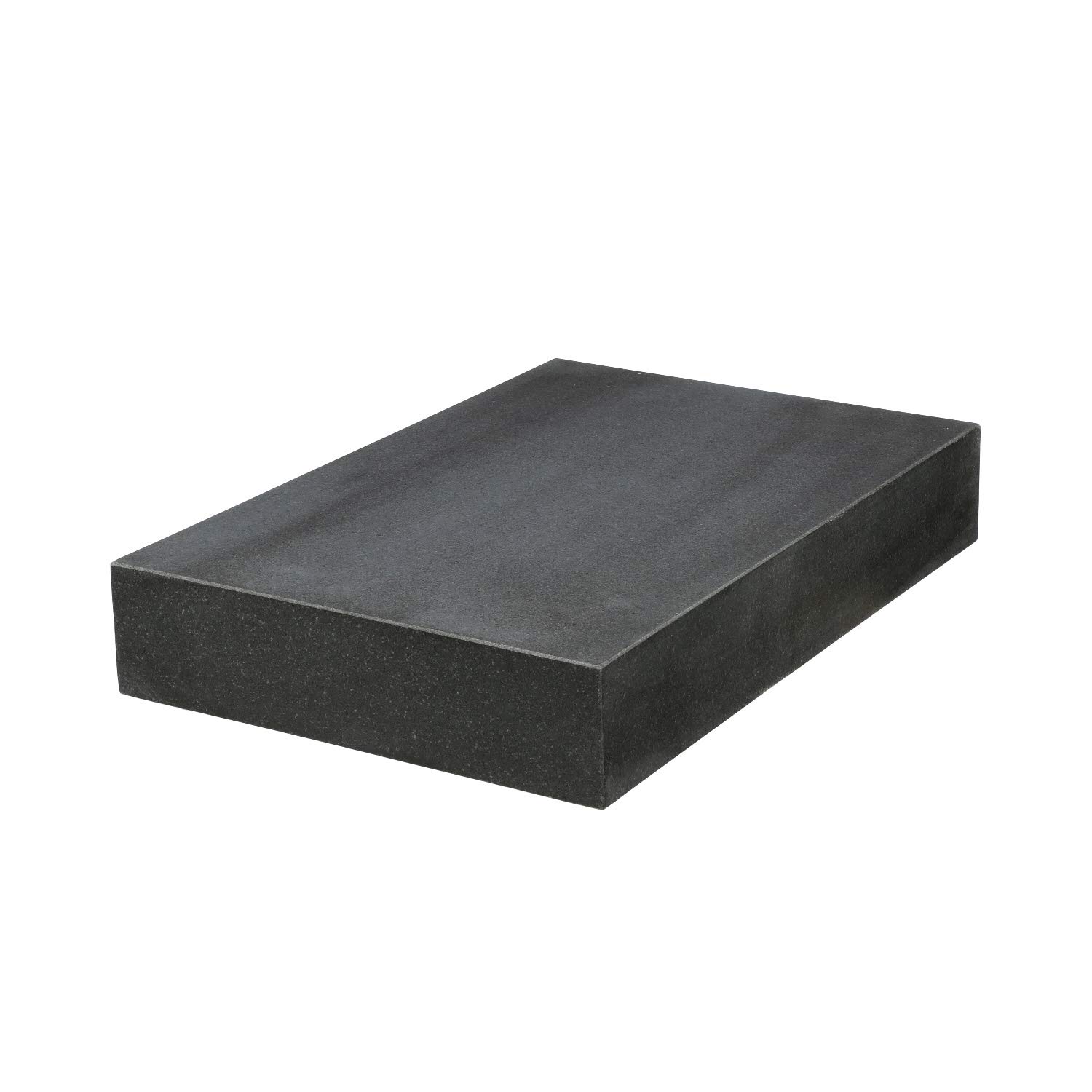

If you rebuild valve bodies on a workbench top, a piece of glass or the bed of a drill press, you are guessing at flatness. This 18 x 12 x 3 inch black granite surface plate (HHIP 4401-1812) gives a transmission bench a true reference: Grade A, rated to plus or minus .000050 inch across the working face, no ledge, shipped with a certificate of inspection. It is the tool you reach for when a 4L60E keeps cross leaking after a rebuild, when a 68RFE separator plate will not seal, or when you need to know whether a pump half or adapter plate is actually flat before you bolt it back on.
A valve body is a stack of machined aluminum castings with a steel separator plate sandwiched between them. The only thing keeping one hydraulic circuit from bleeding into the next is the clamping load on two flat faces and a thin gasket. When a casting has bowed from heat, from bolts run down unevenly, or from a previous builder, oil walks across the land between passages and you get soft apply, flare between gears, or a clutch that burns because it never sees full pressure. A granite plate turns that from a theory into a measurement. Set the casting face down, try to slide a thin feeler blade under each corner and along the edges, and the gap tells you whether the part is flat, needs a light dressing, or belongs in the scrap bin.
Granite is a good material for this because it does not rust, it is not magnetic, and it is very stable with temperature. When the face does get hit, the stone tends to chip a small pit instead of throwing up a raised burr the way a cast iron or steel plate does, so an accident does not leave a high spot that props your part up.
US surface plate grades come from Federal Specification GGG-P-463c (now carried forward in ASME B89.3.7). Grade AA is the laboratory grade, Grade A is the inspection grade and is allowed twice the AA tolerance, and Grade B is the toolroom grade at four times AA. For a plate this size, Grade A is far tighter than any check a transmission bench will ask of it. The practical point is that if a part rocks on this plate, the part is the problem, not the reference.
Clean the casting and the stone first; a single grain of grit will lift a corner and fool you. Lay the part face down without pressing on it, then work a feeler blade around the perimeter and between bolt bosses. A blade that slides in where the part should be clamped means warp. Dressing on paper over the stone is fine for slight high spots, but keep strokes even and check often, because removing too much material changes valve and plate clearances. Our valve body cleaning and inspection guide covers what else to look for while the casting is apart, and the 4L60E valve body rebuild walkthrough explains why bolt torque sequence matters once it goes back together.
Pair the plate with a good 32-blade feeler gauge for gap checks, an inch-pound torque wrench so the valve body bolts go back to spec instead of re-warping the casting, and a dial indicator and base for height work.
The plate measures 18 by 12 by 3 inches and weighs about 77 pounds, which keeps it planted while you work but means it needs a solid bench and two hands to move. Wipe the face before and after each job, keep it covered when the shop is dusty, and never use it as an anvil or a place to set heavy cases down. Dust rubbed between part and stone is what slowly wears a plate, so cleanliness is the whole maintenance plan. The included certificate documents the inspection; note that it is not a NIST traceable calibration.
| Model | |
| Size | |
| Grade | |
| Flatness accuracy | |
| Material | |
| Weight | |
| Standard | |
| Included |
Clean both surfaces, set the casting face down without pressure, and try to slide a thin feeler blade under the corners, along the edges and between bolt bosses. If a blade enters where the face should touch the stone, the casting is not flat. Light high spots can be dressed on abrasive paper laid on the plate; heavy warp means the casting should be replaced.
Yes. Grade A is the inspection grade under GGG-P-463c and ASME B89.3.7, with twice the tolerance of laboratory Grade AA. That is far tighter than the gaps you are looking for on a valve body, separator plate or pump face, so the plate will not be the limiting factor.
Lay wet or dry abrasive paper on the stone and move the part over the paper; do not grind directly on the granite face or use loose compound on it, because that wears the reference surface you paid for.
It weighs about 77 pounds. Put it on a sturdy bench or stand that does not flex, and support it evenly so it is not rocking on one high spot of the bench.
It ships with a certificate of inspection for its flatness grade. The certificate is not NIST traceable, so shops that need traceable calibration for a quality system should have it certified separately.
