Retro-fits GM 6L80E and 6L90E Gen1 and Gen2 valve bodies to Gen3 features, curing the harsh 1-2 bump and weak reverse and drive engagement when hot.
If your 6L80E or 6L90E thumps on the 1-2 shift and feels lazy going into reverse or drive once the transmission is hot, the fix is not always a new valve body. GM corrected those exact complaints on newer production with a revised casting, and this Superior/TransLab STL-6L80E kit brings that same correction to an earlier valve body already in your transmission.

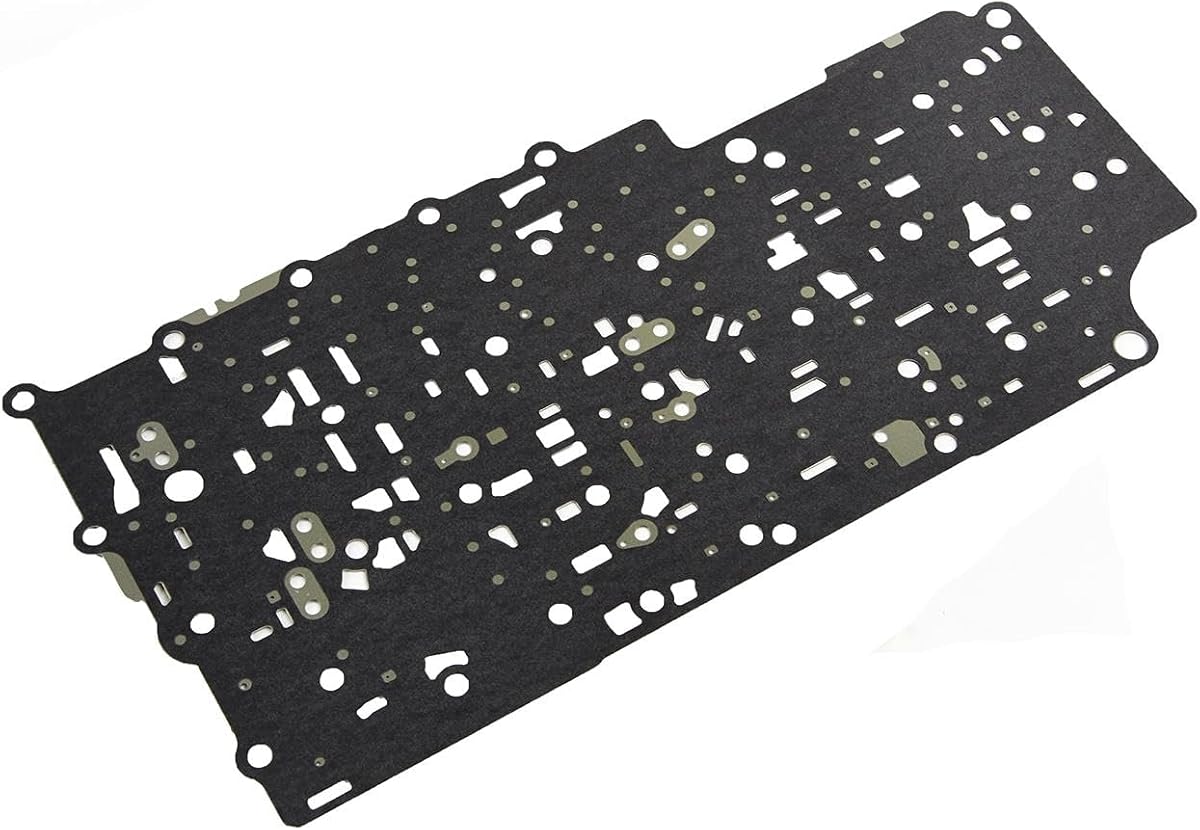

GM's 6L80 and 6L90 valve body went through more than one casting revision over its production run, and the separator plate and circuit layout used on 2014-up units differ from the earlier Gen1 and Gen2 castings. Those early castings have known weak points in the compensator and exhaust circuits: pump volume bleeds off through them instead of staying where it is needed, and the low-reverse clutch loses its exhaust control once fluid is hot and thinner. The result is the hard 1-2 bump and the soft, delayed reverse and drive engagement that shows up on a lot of early 6L80E and 6L90E units once they have some miles and heat cycles on them. Our 6L80 common problems and fixes guide covers where this fits among the transmission's other known failures, and the 6L80 valve body testing guide covers how to isolate a hydraulic circuit problem like this from a solenoid or TEHCM fault.
This kit adds the number 8 check ball and the low-reverse clutch exhaust control feature from the later casting, and uses a flow-limited compensator circuit to stop the compensator and exhaust backfill circuits from bleeding out. That is what restores firm, consistent reverse and drive engagement at operating temperature instead of the mushy feel a worn early-generation body gives, and the corrected compensator valve with calibrated springs is what delivers a smooth, no-bump 1-2 shift. The included valves and sleeves are drop-in real-steel parts sized for the original bores, so there is no reaming step and no dedicated reamer tooling needed to install it.
This kit fits Gen1 and Gen2 6L80E and 6L90E valve bodies. It is a correction kit for an existing valve body, not a replacement valve body, so it goes into the casting you already have rather than onto a shelf unit. If you are not sure which generation casting is in your transmission, compare it against the 6L80 valve body (2009-2019) and 6L80 valve body (2015-2019) listings, or send us your year, vehicle and VIN and we will help you confirm it. The full 6L80 lineup is on the 6L80 parts page.
Pull the valve body, strip it down on a clean bench, and install the kit's valves, sleeves, check ball and springs into their marked bores per the instructions included with the kit. Change the filter and pan gasket and refill with Dexron VI before buttoning it back up, and run the adaptive relearn over the first several drives. For a complete job on 2014-up 6L80 or 2016-up 8L90 applications, GM's service literature pairs this kind of valve body correction with cooler-flow and pump upgrades; a fresh 6L80 pressure switch repair kit is worth checking at the TEHCM while the valve body is out, and a 6L80/8L90/10L80 fluid fill adapter makes the refill straightforward on a transmission with no dipstick.
| Part number | Superior STL-6L80E |
| Fitment | GM 6L80E and 6L90E, all Gen1 and Gen2 valve bodies |
| Function | Retro-fits Gen1/Gen2 bodies to Gen3 circuit features |
| Valve material | Alloy steel drop-in valves and sleeves, no reaming |
| Includes | Corrected select valves, end plugs, calibrated springs, #8 check ball |
| Number of ports | 8 |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
No. It is a correction kit that installs into the valve body casting already in your transmission. It does not replace the valve body, the solenoids or the TEHCM.
The hard 1-2 shift bump and the soft, delayed reverse and drive engagement that shows up on early-generation 6L80E and 6L90E valve bodies once the transmission is at operating temperature, by correcting the compensator and low-reverse exhaust circuits.
No. The valves and sleeves are drop-in real-steel parts sized for the original bores, so no reaming or reamer tooling is required.
It fits Gen1 and Gen2 6L80E and 6L90E valve bodies. If you are not sure which generation your transmission has, send us your year, vehicle and VIN and we will confirm before you order.
Change the filter and pan gasket and refill with Dexron VI at minimum. It is also a good time to check the pressure switches at the TEHCM and inspect for the other wear points covered in our 6L80 common problems guide.
