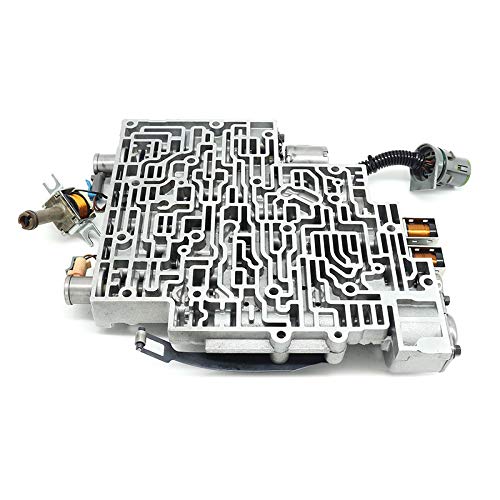

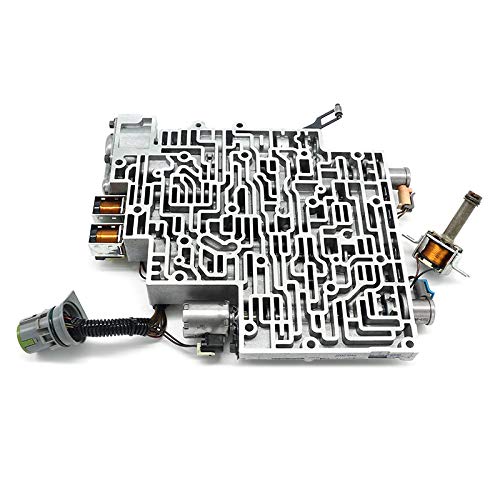

Remanufactured 4L60E/4L65E valve body with solenoids and internal harness installed, for 1996-2006 GM trucks and SUVs with shift or TCC codes.
A 1996-2006 Silverado, Tahoe, Suburban, or Sierra that stores a P1870 code and shudders or slips when the torque converter clutch locks up is almost always wearing out inside the valve body, not the converter itself. This unit ships complete: the remanufactured 4L60E/4L65E valve body casting with the separator plate, shift solenoids, pressure control solenoid, TCC solenoid, and the internal wiring harness already mounted and bench-checked, so there is nothing left to source or match before it bolts in.
On an electronically controlled transmission like the 4L60E, the valve body is both the hydraulic brain and the electrical hub. The casting routes line pressure through spool valves to apply each clutch and band, while the harness and solenoids mounted to it are what the computer actually commands to pick a gear and time a shift. The TCC regulator and isolator valves inside this same casting control how much pressure locks the torque converter clutch, and when those bores wear, the converter apply pressure leaks off before it ever makes a clean lockup.
Our 4L60E valve body wear guide covers why the TCC regulator and isolator bores are usually the first to go and why a P1870 code so often points back to this casting instead of the converter.
Pull the code and check fluid condition first. If the fluid is burnt and smells scorched, the 3-4 clutch pack or a band has already taken damage and this valve body will not undo that on its own; the valve body rebuild walkthrough shows how a shop benches a suspect unit before condemning it. If solenoids have already been swapped once and the code keeps coming back, that is a strong sign the bore itself, not the solenoid, is the real failure.
This assembly is built for 1996-2006 rear-wheel-drive and 4x4 GM trucks and SUVs running the 4L60E or heavier-duty 4L65E: Silverado, Sierra, Tahoe, Yukon, Suburban, Blazer, Jimmy, TrailBlazer, Envoy, and the full-size vans. It does not fit the earlier non-electronic 700R4/4L60 or the later 6L80/6L90. Match your old unit's connector count and casting against this one, or send your year, model, and VIN before ordering. Every 4L60E part we carry by generation is grouped on the 4L60E parts page.
Because the harness and solenoids come pre-installed, this swap is a straight casting-for-casting replacement rather than a rebuild: unbolt the old valve body with its harness, lift the new assembly in, and reconnect the case connector. Fit a fresh filter and pan gasket at the same time so debris from the old unit never reaches the new solenoids, torque the valve body bolts in the sequence GM specifies, and refill with Dexron VI. Run the adaptive shift relearn with a scan tool once it is back together; skipping it is the most common reason a freshly installed valve body still shifts rough on the first few drives. If the 3-4 clutch pack has already seen damage from the original P1870 slip, pair this with a heavy duty rebuild kit rather than installing the valve body alone.
| Type | Remanufactured valve body assembly with solenoids and internal wiring harness |
| Transmission | GM 4L60E / 4L65E |
| Listed years | 1996-2006 |
| Vehicle applications | Silverado, Sierra, Tahoe, Yukon, Suburban, Express, Savana, Blazer, Jimmy, TrailBlazer, Envoy, RWD Pontiac/Buick |
| Drive | Rear-wheel drive (2WD) and 4x4 |
| Addresses | P1870 TCC slip, converter shudder, harsh or erratic shifts, 3-4 flare |
| Shipping weight | About 10 lb |
| Does not fit | Non-electronic 700R4/4L60 or 6L80/6L90 transmissions |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Yes. The shift solenoids, pressure control solenoid, TCC solenoid, separator plate and internal harness are already mounted to the casting and bench-checked before it ships.
In most cases yes, since P1870 usually traces back to TCC regulator or isolator bore wear inside this casting. If fluid is already burnt, the clutches need attention too, not just the valve body.
Yes, for 1996-2006 GM applications running either transmission. It does not fit the earlier non-electronic 700R4/4L60 or the later 6L80/6L90.
That pattern points to bore wear rather than a bad solenoid, which is exactly what a complete valve body assembly addresses.
No reflash is required. Run the adaptive shift relearn with a scan tool, or let the computer relearn over the first several drives.
A new filter and pan gasket at minimum. If the original P1870 slip already damaged the 3-4 clutch pack, add a rebuild kit rather than installing the valve body on its own.
