A larger-bore 2-4 band servo piston for the GM 4L60E, 4L65E, 4L70E and 700R4 that firms up the 1-2 shift and cures a soft or slipping second gear without pulling the transmission.

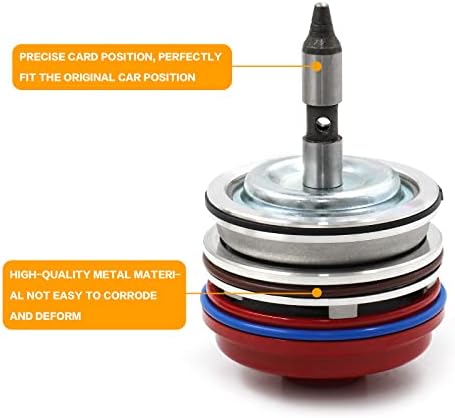

A 4L60E or 700R4 that slurs from first into second, flares the engine on the 1-2 shift, or feels like it hesitates before it grabs overdrive is often losing holding force at the 2-4 band. This Corvette-style servo assembly (manufacturer part number AP037) is the classic in-car fix for that complaint on Silverado, Sierra, Tahoe, Suburban, Blazer, S10, Camaro and Corvette transmissions from the 700R4 days through the 4L60E, 4L65E and 4L70E. It arrives as a complete unit, with the servo piston, the cover and the snap ring, so you are not reusing a worn cover or a fatigued ring from the old assembly.
The servo is a hydraulic piston that sits in a bore on the passenger side of the case, below the band. When the valve body sends 2nd apply oil to it, the piston pushes an apply pin against the end of the 2-4 band, and the band clamps around the reverse input housing. That holding action is what gives you second gear, and the same band applies again in fourth. So one piston is behind both the 1-2 and the 3-4 shift. On the 2-3 shift the band has to let go while the 3-4 clutch comes on, and Sonnax points out that the 4L60 servo uses a release area larger than its apply area so the band is released by oil pressure, not just the return spring. The Corvette version keeps that layout but gives the apply side more area, so the same line pressure produces more clamping force on the band. Sonnax describes the result of the larger apply area as improved holding power and firmer 1-2 and 3-4 shifts, which is why it has been a towing and performance staple for decades.
Be honest about what it will not fix. If second and fourth are completely missing while first, third and reverse work, the band itself or a stripped sun shell is the likely cause, and a bigger servo will not bring the gear back.
Start with the fluid level and condition, then rule out electronics. Transmission Digest's shift diagnosis guide explains the 4L60E solenoid states by gear and notes that losing 2nd and 4th together points to the 2-4 band or the sun shell, not a servo alone. A soft but present second gear with clean fluid is the case where a servo upgrade makes sense. If you are working through a flare on a small truck, our 4L60E S10 shift problems guide walks the order of checks, and the 2-4 band servo Corvette upgrade guide covers when the upgrade is worth it and when a rebuild is the honest answer. Dark fluid with band material on the magnet means the band is already damaged; at that point pair the servo with a new GM 24232236 2-4 intermediate band.
The listing covers the GM 700R4, 4L60E, 4L65E and 4L70E from 1982 through 2014. The servo bore and cover design carried across that family, which is why one assembly serves a 1980s Camaro and a late-model Silverado. Production changes did occur over that run, including apply pin lengths and the fourth-gear apply piston arrangement, so compare your old servo with this one on the bench before you seat the snap ring. If you are unsure which unit you have, send us the year and VIN before ordering. You can see every part we carry for this unit on the 4L60E parts page.
If you want a firmer fourth gear as well, the 4th gear super hold servo kit is the companion upgrade most builders install at the same time.
| Fits | GM 4L60E, 4L65E, 4L70E, 700R4 (1982-2014) |
| Function | Applies the 2-4 band; larger Corvette-style bore for firmer 2nd/4th gear apply |

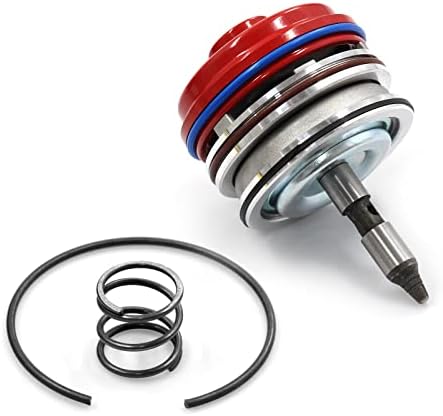

| Includes | Servo piston, cover, and snap ring (complete assembly) |
| Manufacturer part number | AP037 |
| Installation | Through the case servo bore; no transmission removal; about 30 minutes |
| Tools needed | Prybar, flathead screwdriver, 10mm socket, large channel-lock pliers |
| Item weight | 1.74 lbs |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
The listing fits the 700R4, 4L60E, 4L65E and 4L70E from 1982 through 2014. Compare it with your old servo before installing, especially the apply pin, and send us your year and VIN if you are not sure which unit is in the vehicle.
No. The servo comes out of its bore in the side of the case with the transmission in the vehicle. Most people finish in well under an hour with basic hand tools.
It helps when the band is healthy but not clamping hard enough, for example a soft or flaring 1-2 shift. If second and fourth are missing completely, or the fluid is burnt with band material in the pan, the band or sun shell is the problem and needs attention first.
Use Dexron VI, which is GM's current specification for the 4L60E family and is back-compatible with earlier Dexron fills. Check the level hot after the road test.
The 3-4 shift usually gets firmer because the band also applies in fourth. The 2-3 shift depends on the band releasing on time, so a sticky servo release circuit or a wrong apply pin will show up there. Measure the pin and keep the valve body healthy.
