Finding a drip of red fluid on the driver side of the transmission, right below where the shift linkage meets the case, on a Silverado, Sierra, Tahoe, Suburban or other GM C/K truck? A weeping manual shift shaft seal is one of the most common 4L60E and 4L80E leaks, and the seal itself is cheap. This kit gets it done without pulling the transmission: a threaded remover that draws the old seal out of the case, an installer that presses the new one in square, and a replacement seal (0.45 in ID x 0.75 in OD x 0.20 in thick).
What the shift shaft seal does in a 4L60E
The manual shaft passes through the side of the case. Outside, the shift lever and the range (park/neutral position) switch ride on it. Inside, it turns the detent lever, which moves the manual valve link and the parking lock actuator. The seal is a small lip seal pressed into the case bore around the shaft, and it is the only thing keeping fluid in at that spot. Every time the shifter moves, the shaft rotates against the lip, and heat cycles harden it over time. Once it hardens or the shaft gets pitted, it seeps.
In the GM overhaul procedure this seal comes out on the bench after the inside detent lever, manual shaft retainer and manual shaft are removed, and a new seal goes in before the inner linkage is rebuilt. That is fine during a full rebuild, but nobody wants to pull a transmission for a leak. This kit lets you hook the seal from outside the case with the shaft still in place.
Symptoms of a leaking shift shaft seal
- Wet case and fluid drips directly below the shift lever, worse after a drive
- An oily, dirt-caked range switch on the side of the case
- Slowly dropping fluid level with no leak at the pan, cooler lines or tail housing
- On neglected trucks, a low fluid level that starts causing delayed engagement or slipping
How to confirm the leak before buying
Clean the case side with brake cleaner, drive the truck, and look again. Fluid tracking down from the shaft itself points at this seal. Wetness that starts higher can be the pan gasket, the cooler line fittings or the electrical connector. Low fluid also makes a 4L60E slip and burn clutches, so check the level hot while you are under there. Our 4L60E common problems guide covers the leak points and what low fluid does to the 3-4 clutch, and the S10 4L60E problems guide shows the same layout on the smaller trucks.
Fitment
The kit is listed for the GM 4L60E, 4L65E, 4L70E and 4L80E automatics in Chevy and GMC C/K series trucks with V6 and V8 engines running the long-style shifter shaft. Shaft length varies by model, so be honest with yourself about what you have: on some short-shaft GM boxes and older TH350 or 700R4 shafts the remover fits very tight, and users have lightly deburred it or added a slightly longer bolt or spacer to make it work. Compare your shaft to the photos, or send us your year and VIN and we will check. More parts for this unit are on our 4L60E parts page.
Install notes
- Note the lever position, then remove the shift lever nut and lever from the shaft. Unplug the range switch, mark its position, and unbolt it so the seal is exposed.

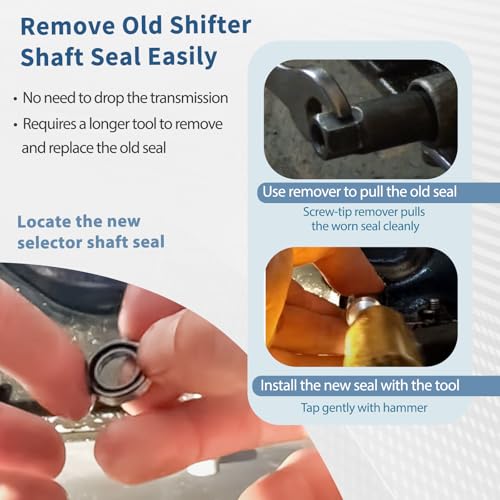

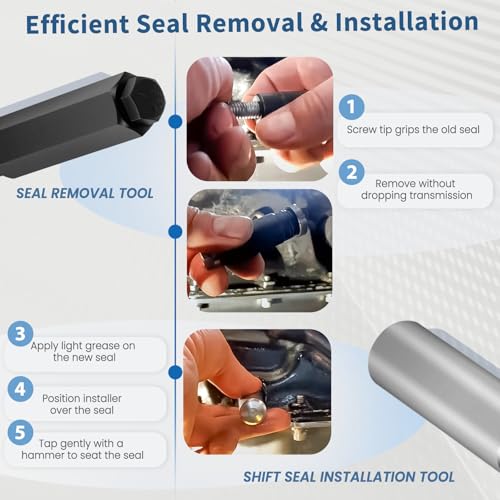

- Thread the remover into the old seal, then turn the bolt to draw it out. Do not pry against the case bore, which is aluminum and scratches easily.
- Clean the shaft and polish any rust or pitting where the lip rides. A rough shaft eats a new seal quickly.
- Oil the new seal lip with ATF and press it home with the installer until it seats flat and square.
- Reinstall the range switch in its original position and confirm the truck starts only in Park and Neutral and the reverse lights work. If the column linkage is sloppy, our column shift linkage kit is worth doing at the same time.
- Top off with Dexron VI ATF and check the level hot. If you are also chasing a cooler line leak, the OTC 7937 cooler line disconnect tool releases the GM fittings without damage.
