4L60E Master Rebuild Kit with Bonded Pistons, Band and Filter

This master overhaul kit is for the GM 4L60E family when the unit has come out burnt: a blued 3-4 clutch pack, a glazed 2-4 band, a forward clutch worn down to the steels, or a pan packed with debris. It is one of the few kits we carry that also lists the late 4L75E alongside the 4L60E, 4L65E and 4L70E, and it ships with several valve body separator plate gaskets so one box covers more than one production year. Common applications are the Silverado and Sierra 1500, Tahoe, Yukon, Avalanche, Escalade, Trailblazer and Canyon.

What a master overhaul kit does in a 4L60E

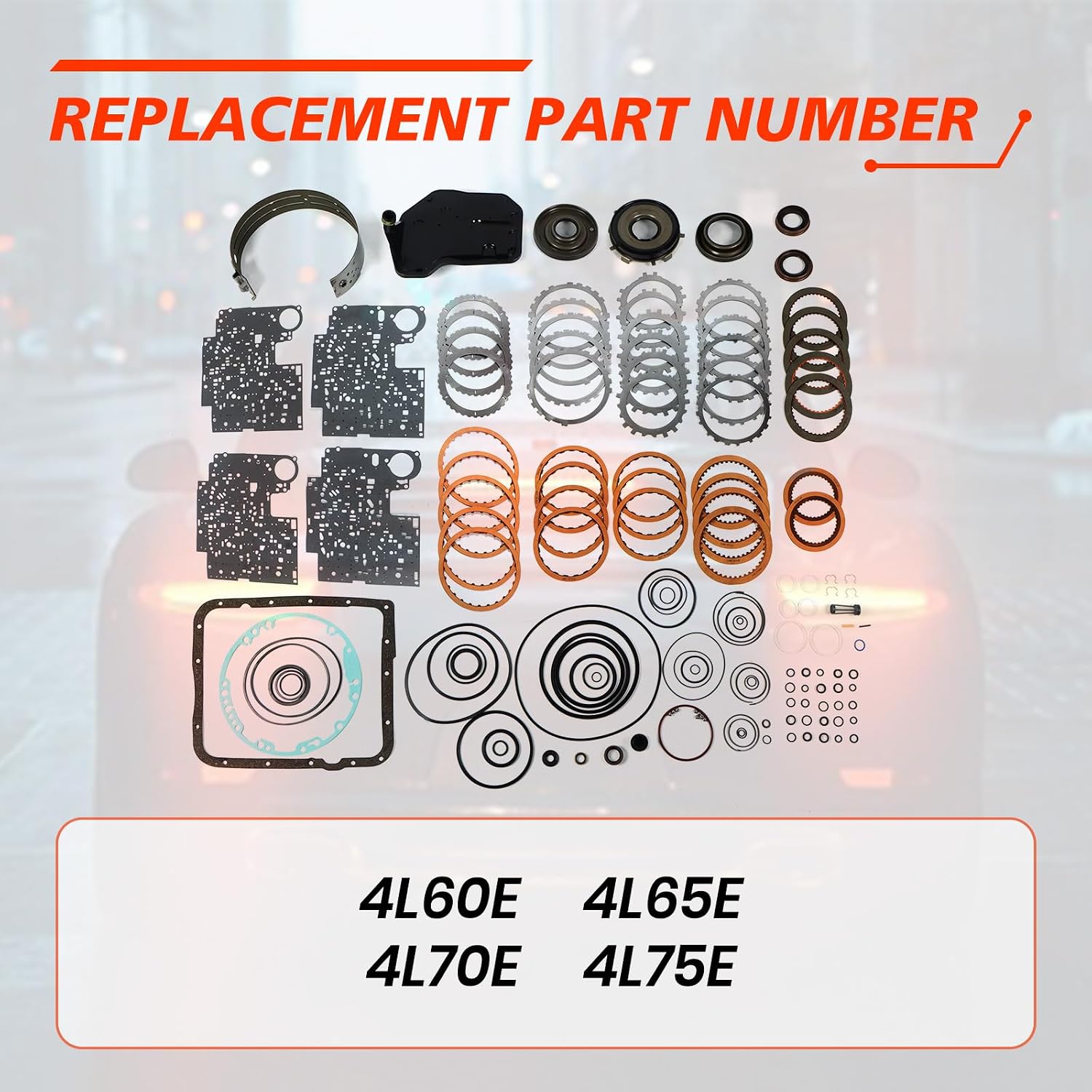

A reseal kit only stops leaks. This kit renews the parts that actually transmit torque. The friction plates and steel plates rebuild the clutch packs, the new 2-4 band restores the hold for 2nd and 4th, and the bonded pistons replace the apply pistons that clamp each pack. Around them you get the pan gasket, front pump and rear seals, sealing rings, O-rings and a deep-sump style filter. That leaves the hard parts, and the kit is clear about it: the sun shell, drums, planetary gear sets and bushings are not included. On a 4L60E those are exactly the parts a burnt unit tends to damage, so budget for them once you see the teardown.

Symptoms that point to this kit

• No 3rd or 4th, or 3rd that slips and then catches, from a burned 3-4 clutch pack
• Slipping on the 1-2 shift and in overdrive from a glazed 2-4 band
• Slipping when pulling away in drive, a sign of forward clutch wear
• Burnt-smelling fluid and a filter or pan full of friction and metal debris
• TCC slip complaints with P0741, which can be valve body wear rather than clutch damage and should be checked separately

How to confirm before you buy

Pull the pan and look at what is on the magnet and in the filter. Fine dark material is normal; large flakes, band lining and bright metal mean the unit needs a full overhaul. Before you blame the clutch packs for a shift-quality complaint, check the valve body: Sonnax's vacuum test guide links specific worn bores to TCC slip, 3-4 problems and harsh engagement. Our 4L60E valve body rebuild walkthrough shows how to test and service it, and the overrun clutch guide covers a pack that is easy to overlook when you diagnose no engine braking in manual 2 or 3.

Fitment

Listed for the GM 4L60E, 4L65E, 4L70E and 4L75E. The listing does not give a year range, and GM revised gaskets, pistons and the separator plate several times, so fitment is confirmed on the bench. The most important check is the separator plate gasket: lay your old gasket over each one in the kit and match every hole before you torque the valve body. A wrong gasket can block a feed and leave you with no reverse or a slipping 3-4 shift on the first drive. Send us your year and VIN if you want help, and see all parts for this unit on the 4L60E collection page.

Install notes

• Soak frictions for at least 30 minutes in ATF and wet each bonded piston bore with clean fluid before seating it.
• Check clutch clearance on every drum as you stack it, then air check each circuit before the pan goes on.
• Inspect the reaction sun shell; stripped splines give the same no-3rd complaint as a burned pack. A GM genuine reaction sun shell is the usual add.
• If you replace the reaction carrier, its bearing and shaft, Transmission Digest notes that GM revised those parts in March 2007 and they must be matched as a set. Set bench end play around 0.020-0.030 in.
• Many shops replace the solenoids while the valve body is off; a remanufactured master solenoid kit covers that.
• Fill with Dexron VI and clear shift adapts after installation.

Why are there several separator plate gaskets in the box?

GM changed the valve body separator plate over the years. The kit includes several gaskets so you can match the one with the same hole pattern as your original. Use only the one that lines up exactly.

Does it include bushings or the sun shell?

No. The sun shell, drums, planetaries and bushings are not included. Inspect them during teardown and order any that are worn.

Will this kit work on a 4L75E?

Yes, it is listed for the 4L60E, 4L65E, 4L70E and 4L75E. Compare pistons and gaskets with your originals since years are not listed.

My truck has P0741 and slips in 3rd. Is this kit enough?

P0741 is a torque converter clutch code that often comes from valve body wear, while 3rd-gear slip points to the 3-4 pack. This kit handles the clutch side; test and service the valve body as well.

What fluid do I use when it goes back in?

Dexron VI ATF. Soak the frictions in it before assembly and check the level hot after the first drive.
