6HP21 Refurbished Transmission Solenoid Kit for BMW

If your BMW 535i, 550i, 750Li, X5 or X6, or a Jaguar XF, XJ or XK with the 5.0L, has started banging into Reverse, flaring on the 2-3 or 4-5, or briefly dropping into what feels like Neutral between gears, the solenoid bank in the ZF 6HP21 or 6HP28 mechatronic is the usual suspect. This is a complete refurbished set of the shift and pressure control solenoids for those second-generation 6HP units, replacing OE 1068227066, with each solenoid matched to factory flow rate and coil resistance.

What the solenoids do in a 6HP21 or 6HP28

Every 6HP mechatronic carries nine solenoids: one line pressure control solenoid and eight shift and clutch solenoids that work in pairs. The transmission computer never moves a clutch directly - it changes the current to a solenoid, the solenoid meters fluid to a shift or clutch valve, and that valve applies the clutch. The 6HP21 and 6HP28 are the Generation 2 design. Compared with the earlier 6HP19 and 6HP26, ZF removed the MV1 solenoid and split the old D/E clutch job into two normally-vented solenoids, EDS6 for the D clutch and EDS4 for the E clutch. That is why a Generation 1 solenoid set is the wrong part for this box even where it physically fits a bore.

All nine solenoids draw their working pressure from one shared solenoid pressure regulator valve. When the coils drift or a solenoid starts leaking internally, the computer commands a pressure the hydraulics cannot deliver, and its adaptive tables chase the error until they run out of range.

Symptoms of worn 6HP21 / 6HP28 solenoids

• Harsh 1-2 and 2-3 upshifts, or a hard engagement into Drive or Reverse
• Flare or a neutral bump between gears, often worse once the fluid is hot
• Drivetrain malfunction or transmission warnings with the car dropping into a fixed-gear limp mode
• Stored gear ratio and solenoid performance faults pointing at more than one clutch
• On the E clutch circuit, complaints tied to the EDS4 solenoid that show up in 4th, 5th and 6th, the gears that use the E clutch

How to confirm it before buying

Two tests, and you need both. With the circuit board removed from the mechatronic, each solenoid should read 5 to 6 ohms at 68 F, measured with an ohmmeter that puts out no more than 0.6 volts. The resistance check misses the most common failure, though: internal mechanical leakage. Sonnax treats a vacuum test on a matched test manifold as the real pass/fail, with anything under 20 in-Hg rejected. Our ZF6HP shift solenoid symptoms and replacement guide walks through both tests and the connector colors. If several gears misbehave at once, read the pressure control solenoid testing guide first, because a worn regulator bore can mimic a full set of bad solenoids.

Fitment

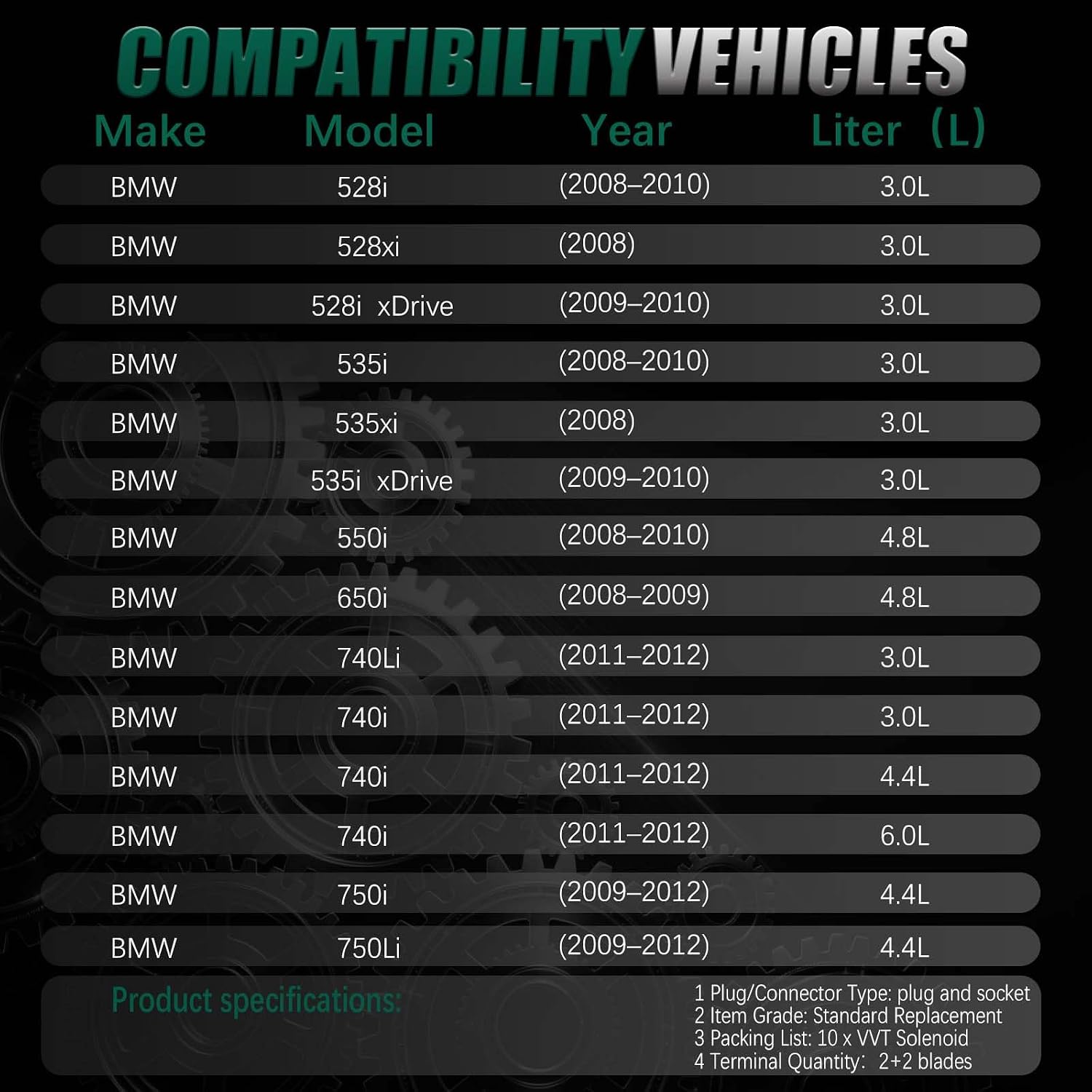

This kit is listed for the ZF 6HP21, 6HP28 and the all-wheel-drive 6HP21X and 6HP28X. BMW coverage: 2008-2010 528i, 535i and 550i; 2008-2009 650i; 2009-2012 750i and 750Li; 2011-2012 740i and 740Li; 2007-2013 X5; 2008-2014 X6; and the Alpina B7. Jaguar coverage: 2010-2012 XF, 2011-2012 XJ, and 2010-2014 XK, XKR and XKR-S with the 5.0L. Several of these vehicles changed from a 6HP26 to a 6HP28 or 6HP21 partway through production, so read the ZF tag on the transmission case before you order. If the tag says 6HP19, 6HP26 or 6HP32 you need a Generation 1 set instead. Not sure? Send us the year and VIN and we will check it. Everything else we carry for this family is on the ZF 6HP parts page.

Install notes

• The job is pan-down with the transmission in the car. The plastic pan has the filter built in, so plan on a new pan rather than reusing the old one.
• Put each new solenoid in the same bore its original came out of, and keep the connectors on the right ports. The computer learns flow per location, and crossed solenoids bring the shift complaint right back.
• Replace the mechatronic connector sealing sleeve while you are in there. A leaking sleeve lets fluid wick into the connector and can cause the same intermittent faults you are trying to cure.
• Refill with ZF LifeguardFluid 6 such as our 6-liter LifeguardFluid 6. There is no dipstick - the level is set at the fill plug with the engine idling, filling until fluid runs out.
• Reset the transmission adaptations with a scan tool and drive the car through every gear so the computer relearns on the new set.

If you would rather install new solenoids than refurbished, compare our ZF 6HP21 7-piece solenoid kit. For BMW-specific shift complaints, see ZF6HP BMW 5 Series shift problems or the Jaguar shift problems guide.

Will this kit fit my 6HP26?

No. This is a Generation 2 set for the 6HP21, 6HP28, 6HP21X and 6HP28X. The Generation 1 units (6HP19, 6HP26, 6HP32) use an MV1 solenoid and a different solenoid strategy, so check the ZF tag on your case before ordering.

Why replace all the solenoids instead of the one that failed?

With the pan and mechatronic already out, replacing the full set puts every solenoid back on the same wear curve so the computer is not adapting to one fresh solenoid and eight tired ones. If testing shows only one bad solenoid and the rest pass a vacuum test, replacing just that one is a valid choice.

What does refurbished mean for this kit?

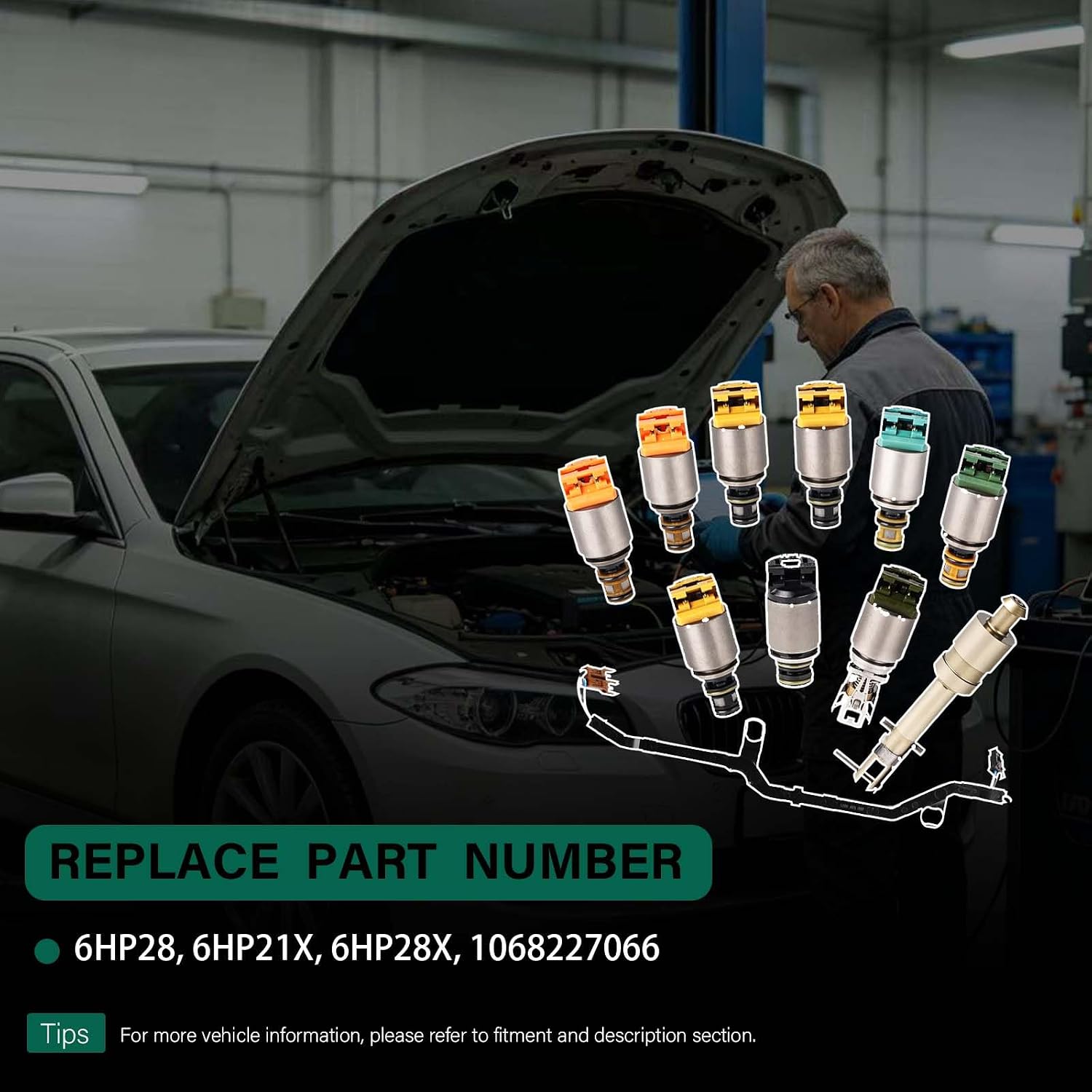

These are refurbished solenoids matched to factory flow rate and coil resistance, replacing OE 1068227066. They are not new-production units.

Do I need to reset adaptations after installing?

Yes. Clear the transmission adaptations with a scan tool after the install. Otherwise the computer keeps the corrections it built up for the worn solenoids and the shifts can stay harsh or soft.

What fluid should I use?

ZF LifeguardFluid 6 or an ATF that carries the ZF 6HP approval. Do not mix in a generic multi-vehicle fluid, and set the level at the fill plug with the engine running since there is no dipstick.
