8HP70 Transmission Service Kit with Pan, Filter and ATF

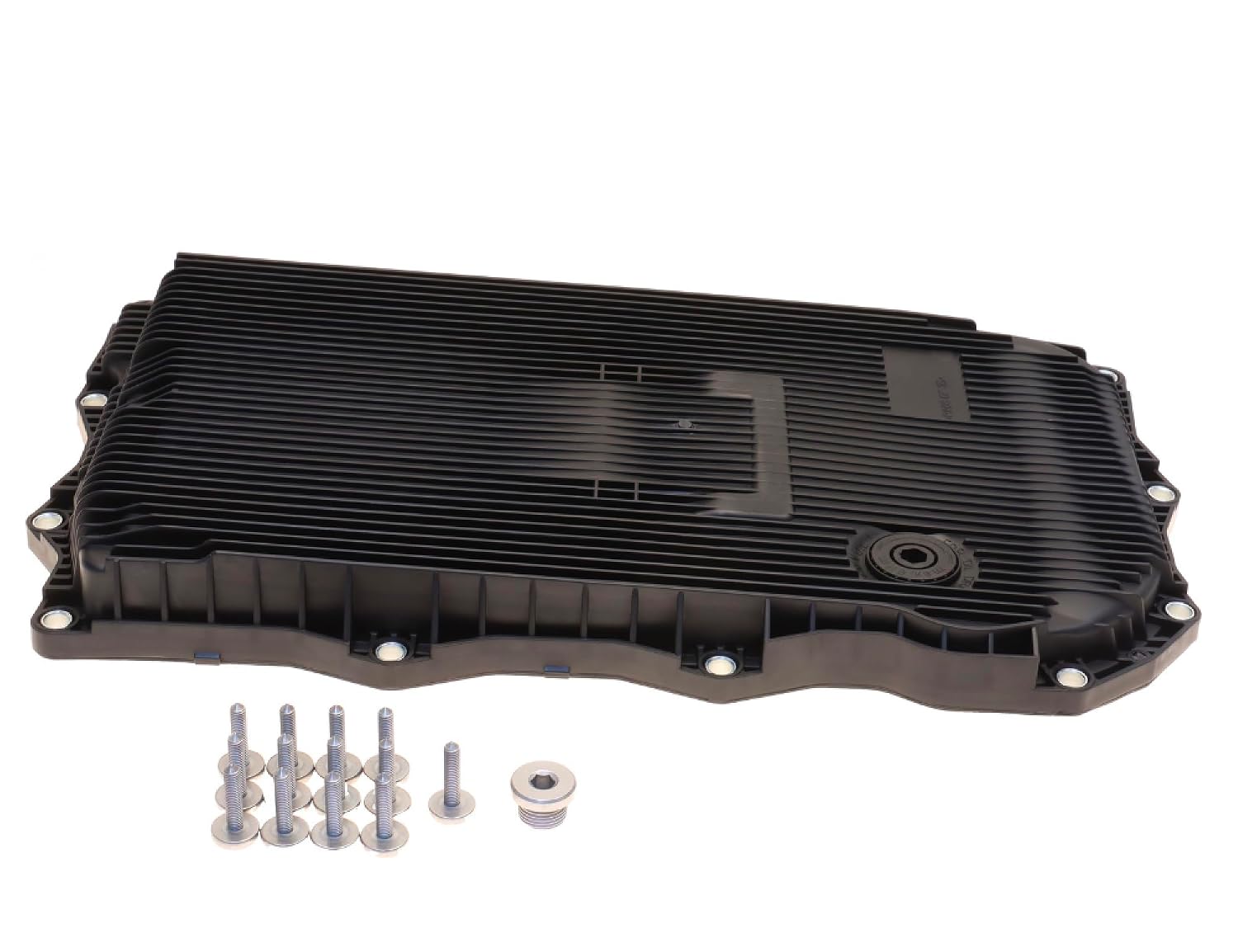

This kit is a complete fluid and filter service for BMWs with the ZF GA8HP70Z eight-speed automatic, the heavier-duty version of the 8HP used behind BMW's larger six-cylinder and V8 engines. In one box you get a composite oil pan with the filter built in, the pan gasket, drain plug and magnets already fitted, 13 new pan bolts, a fill plug with seal, six liters of ATF and a hand transfer pump for the side fill port. Owners usually buy it when a high-mileage BMW starts shifting hard from 2nd to 3rd or 4th to 5th, shudders lightly in lockup, engages slowly on a cold morning, or simply has never had its so-called lifetime fluid changed.

What the pan and filter do in a BMW 8HP70

The 8HP70 keeps its fluid in a pan under the mechatronic unit, which combines the valve body, solenoids and transmission control module. The pump pulls fluid up through the filter, so every solenoid and valve bore downstream sees only what gets past it. On the plastic-pan 8HP there is no separate filter element to unclip: ZF's own service information lists the filter as integrated in the plastic pan, so changing the filter means changing the pan. The magnets in the pan floor hold the fine clutch and steel wear that every automatic makes, and once they are loaded they stop catching new debris. ZF also notes that the fluid ages faster at very high operating temperatures, which is what a heavy BMW with a big engine sees in hard driving.

Symptoms that call for this service

• Harsh or bumpy 2-3 and 4-5 upshifts that are worse once the car is warm
• A light shudder at steady cruise when the converter clutch is applied
• Slow engagement from Park into Drive or Reverse after the car sits overnight
• Fluid weeping at the pan flange or the drain plug
• Fluid that is dark or smells burnt when the fill plug comes out

How to confirm before you buy

Start with the level, not the parts. BMW's diagnosis bulletin for the ZF eight-speed tells technicians to check the fluid level on every transmission complaint, even when there is no visible leak, and to verify the complaint before resetting adaptations or reprogramming. A low level produces the same harsh shifts and shudder as old fluid. If the level is correct and the fluid is dark, a pan and fluid service is the right first step. If you find coarse metal or a pan full of friction material, or the car sets ratio fault codes, the problem is past the filter. Our 8HP high-mileage service checklist and 8HP common problems and fixes guides walk through how to tell the difference.

Fitment

This kit is listed for the GA8HP70Z. BMW used several members of the 8HP family across the same model lines, and the pan shape and fill quantity are not the same on every one, so the same model year can carry a different unit depending on engine and drive. Read the transmission code on the case tag on the side of the transmission before you order, or send us your year and VIN and we will check it. If your tag reads 8HP45 or 8HP50, look at the other pans in our ZF 8HP collection instead.

Install notes

• Drain warm through the drain plug, then loosen the 13 pan bolts crosswise from the center outward and lower the pan. It will still hold fluid. Look at the magnets before you discard it.
• Clean the case flange. The new pan has its gasket fitted, so do not add sealer.
• Run every bolt in by hand, then tighten crosswise from the center out. The kit instructions call for 8 Nm and ZF lists 10 Nm for plastic pans, so stay in that range with a torque wrench. Overtightening distorts the composite flange and causes the leak you were trying to fix.
• On rear-wheel-drive housings ZF lists the drain plug at 8 Nm and the fill plug at 35 Nm. xDrive units with the all-wheel distributor use different plugs, so confirm which one you have.
• Fill through the side port with the included pump. Then, with the car level and the engine running, bring the fluid to 30-50 C on a scan tool, hold 2,000 rpm for 30 seconds, select P, R and D, fill until fluid runs out and close the plug at single drops.

Use only ZF LifeguardFluid 8 or an approved equivalent, with no additives. A pan drop can use most of the six included liters, so keep a 7-liter pack of LifeguardFluid 8 handy for top-off or a second service. If shift complaints remain on fresh fluid at the correct level, the 8HP45/8HP70 mechatronic solenoid kit is the next place to look.

Will this fit my BMW with the 8HP45?

This kit is listed for the GA8HP70Z only. Check the transmission code on the case tag. If it reads 8HP45 or 8HP50, choose a pan listed for that unit, or send us your VIN and we will match it.

Is six liters enough?

For a pan and filter service on the 8HP70 it is usually close to the full amount. Do not fill by volume. The level is only correct when fluid runs out of the fill hole at 30-50 C with the engine running, so having an extra liter on hand is sensible.

Can I replace just the filter and keep my pan?

Not on the plastic-pan 8HP. The filter is molded into the pan, so the pan is the filter. That is why this kit includes a complete pan assembly.

Do I need a scan tool for this job?

Yes. There is no dipstick, and the level has to be set inside the 30-50 C fluid temperature window. You need a tool that reads transmission fluid temperature.

BMW says the fluid is lifetime. Why change it?

ZF, which builds the transmission, recommends a fluid change at 150,000 km, roughly 93,000 miles, and sooner under high heat, heavy load or hard driving.

Should I reset adaptations after the service?

Only when a technician has verified the complaint first. BMW's own diagnosis bulletin warns against resetting adaptations or reprogramming before the complaint is confirmed and the fluid level is checked.
