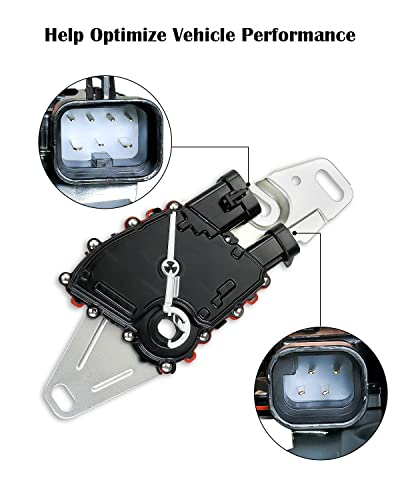

If your Silverado, Sierra, Tahoe, Suburban, Express or Escalade will crank in Drive, refuses to crank in Park, shows the wrong letter on the gear indicator, or has back-up lights that quit working, the park/neutral position switch on the side of the transmission is the first part to test. This replacement switch crosses to GM 24229422 and ACDelco D2263C, along with 12450016, 352-3201, NS85T and DR4033, and plugs into the factory connector on 1995-2003 4L60E and 1994-2000 4L80E transmissions.
What the park/neutral switch does on a 4L60E or 4L80E

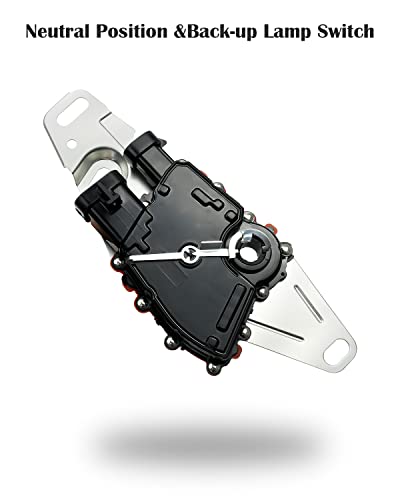

GM's catalog name for this part says it plainly: switch, parking/neutral position and backup lamp. It mounts on the driver side of the case over the manual shaft, so it turns whenever the shifter moves the inside detent lever and the manual valve. Internal contacts do three jobs. They allow the starter circuit only in Park and Neutral, they close the back-up lamp circuit in Reverse, and they send a range signal that the computer and the cluster use to know which position the driver selected. That range signal matters for more than the gear display, because the powertrain computer uses it alongside the hydraulic pressure switch inside the transmission to decide how the unit should behave. When a contact wears or corrodes, the switch can report a position that does not match the shifter.
Symptoms of a failing switch
- The engine cranks with the shifter in Drive or Reverse, which is a genuine safety hazard
- No crank in Park, but the truck starts if you jiggle the shifter or start it in Neutral
- Back-up lights dead even though the bulbs and fuse test good
- Gear indicator showing the wrong range, flickering, or showing nothing
- A transmission range circuit code such as P0705, or odd shift behavior that comes and goes with shifter position
Transmission Digest documented that on some 1995-1998 GM trucks and vans the connector on this switch is difficult to remove, and that switch-related complaints included an incorrect or missing gear indication and no back-up lights. Those are the same symptoms owners report today on high-mileage trucks.
How to confirm the switch is the problem
First, check the shift linkage or cable adjustment. A cable that has stretched or a bushing that has fallen out can leave the manual shaft short of the true Park or Neutral detent, and the switch will read correctly for where the shaft actually is. Our manual valve and detent service guide explains the detent lever and manual shaft that the switch rides on. Next, unplug the connector and inspect the terminals; the switch sits low on the case where water and road salt collect, and a green corroded terminal causes the same symptoms as a worn switch. With a meter, check continuity across the start circuit in Park and Neutral and across the back-up lamp circuit in Reverse. If continuity drops out or changes as you rock the shifter within a detent, the switch is worn. If you have range-related shift complaints as well, the electronic faults guide covers the other inputs worth checking before blaming hard parts.
Fitment
This switch is listed for the 4L60E from 1995 to 2003 and the 4L80E from 1994 to 2000, covering Chevrolet, GMC, Cadillac, Hummer and Oldsmobile trucks, vans and SUVs including the Silverado and Sierra 1500, 2500 and 3500, Tahoe, Yukon, Suburban, Escalade, Blazer, Astro, Express and Savana. GM has since superseded 24229422 to a newer number, and the switch design changed on later model years, so a 2004 and newer truck usually needs a different part. The surest check is to read the number on your old switch and match it to the cross-reference above, or send us the year and VIN. Browse the rest of the 4L60E parts and 4L80E parts pages for related service items.
Install notes
- Put the shifter in Neutral and set the parking brake before you start, and chock the wheels.
- Release the connector lock carefully. On 1995-1998 trucks the connector can be stubborn; work it straight off rather than prying on the switch body.
- Remove the two mounting bolts and slide the old switch off the manual shaft. Note how the shaft flats line up with the switch.
- Install the new switch with the shaft still in Neutral, align it to the flats, and set it to the Neutral position before tightening the bolts. Do not force the switch onto the shaft.
- Clean the connector, add dielectric grease, and plug it in. Then test: the engine must crank only in Park and Neutral, and the back-up lamps must light in Reverse.
Since the truck is in the air anyway, it is a good time to service the pan and filter with Dexron VI and look at the internal electrical parts if you have shift codes. A 4L60E master solenoid kit with pressure switch covers the hydraulic side of range sensing on later units.
