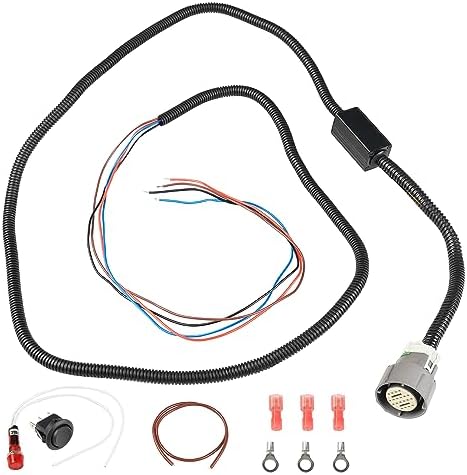

Plug-in harness that runs a GM 4L60E without a PCM or TCM, so the gear follows the shifter position. Built for swaps, race cars, and off-road builds.
You dropped a 4L60E behind a carbureted small-block, an older engine, or a race motor with no GM computer, and now the overdrive unit sits there with an empty case connector and no way to shift. Or you have a Silverado, S10 or Camaro that stays in one gear and you need to know whether the problem lives in the transmission or in the computer. This standalone harness answers both. It plugs into the round 4L60E case connector and lets the shifter lever choose the gear, with no PCM, no TCM, no vehicle speed sensor and no throttle position input.
A stock 4L60E does not pick its own gears. The computer switches two on/off shift solenoids inside the pan, usually called A and B, and the combination of the two decides the gear: both on for 1st, B only for 2nd, both off for 3rd, and A only for 4th, as Transmission Digest lays out in its solenoid state chart. Take the computer away and both solenoids go dead, which is why an unpowered 4L60E sits in 3rd in Drive. This harness replaces that computer logic with switching tied to the shifter position, so each detent on a seven-position PRND321 lever produces the solenoid combination for the gear it is marked with. The transmission internals stay stock. Nothing is drilled, plugged or swapped in the valve body.
One thing a buyer should know up front: the pressure control (EPC) solenoid is normally fed a varying current by the computer to trim line pressure. Transmission Digest explains that when the EPC receives no current command, line pressure goes to maximum. A manual shift setup with no controller therefore tends to engage and shift firmly. That suits a drag car or a crawler, but it is not the soft factory feel of a daily-driven truck.
A harness only gives the transmission commands. It will not bring back a gear the hard parts have lost. Before you blame a swap or a computer, read through our 4L60E common problems guide: a unit with a stripped sun shell has no 3rd or 4th, and a burnt 3-4 clutch pack slips under load, and both behave the same with or without this harness. If you are diagnosing a factory truck, the S10 shift problems guide shows how to use solenoid states to sort an electrical fault from a mechanical one. If the transmission shifts through every gear on this harness but not on the truck's computer, the fault is upstream of the case connector.
This harness is for the GM 4L60E only, in both 2WD and 4WD cases, and it plugs into the factory round case connector. Your shifter must have the full seven positions (P R N D 3 2 1) or some gears cannot be selected. It is not for the earlier 700R4, which has no shift solenoids, and it is not sold for the 4L80E. If your 4L60E came out of a later truck or has been rebuilt with a different internal harness, check that the case connector matches before you order. You can browse every part we carry for this transmission on the 4L60E parts page, or send us the year and VIN of the donor vehicle and we will check it.
| Transmission | |
| Connection | |
| Computer required | |
| Shifter requirement | |

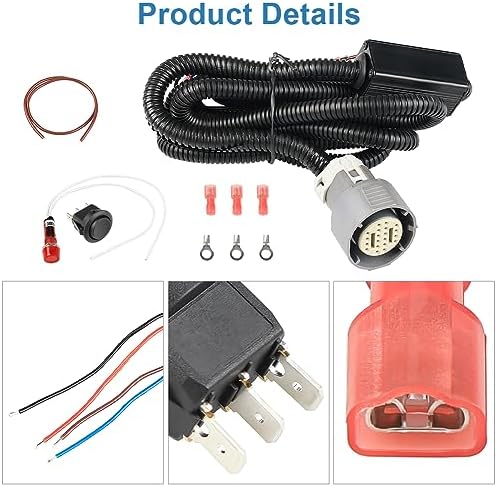

| Includes | |
| Transmission modification |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
No. The harness takes the place of the computer for shifting. It does not need a speed sensor, throttle position sensor or any GM controller to select gears.
Yes, as long as the column or floor shifter has all seven positions, P R N D 3 2 1. A shifter with fewer detents cannot reach every gear.
With no computer driving the pressure control solenoid, the 4L60E runs at high line pressure. That gives firm engagements and shifts, which most race and off-road builds want.
No. The 700R4 is a hydraulic transmission with no shift solenoids, and the 4L80E uses a different connector and solenoid layout. This kit is for the 4L60E in 2WD and 4WD form.
Yes. If the transmission shifts through every gear on this harness but not on the truck computer, the problem is in the computer or outside wiring rather than inside the transmission.
No. It plugs into the outside case connector, so there are no internal changes. You only need to wire power, ground and the switch.
