Replacement shift, TCC, TCC PWM, 3-2 and EPC solenoids on an internal harness for GM 4L60E and 4L65E units, 1993-2005 trucks and cars.

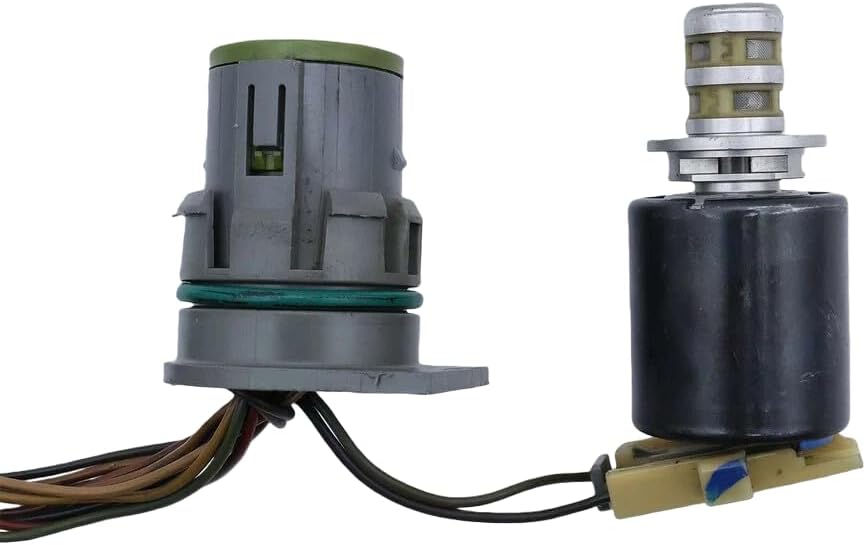

Searching for a fix for a Silverado or Sierra that will not upshift, an Avalanche with converter shudder, or a Blazer or Camaro that slams into gear? When the code list points at the valve body solenoids, this kit swaps every one of them along with the wiring that feeds them. You get new 1-2/3-4 and 2-3 shift solenoids, the TCC solenoid, the TCC PWM solenoid, the 3-2 downshift control solenoid and the EPC pressure control solenoid, all pre-mounted on a new internal wiring harness for GM 4L60E and 4L65E units.
Inside the case, an AFL (actuator feed limit) valve trims line pressure down to a steady feed of roughly 115 psi, and that regulated oil is what every solenoid on this harness works with. The two shift solenoids open and close exhaust ports to stroke the shift valves. The EPC solenoid is a variable-force unit, so the computer can raise or lower line pressure in small steps to firm up a shift under load. The TCC solenoid switches converter apply on, while the TCC PWM solenoid pulses so the clutch engages gradually rather than all at once. The 3-2 solenoid manages how fast the 3-4 clutch lets go during a kickdown. When the harness feeding them cracks or a terminal loosens, the computer loses control of all of them at once, which is why this kit treats the wiring and solenoids as one repair.
A pile of solenoid codes at the same moment is a strong hint at the wiring, not the coils. ATRA documented 4L60E units setting P0740, P0753, P0758 and P0785 together from a single poorly crimped terminal on a shared circuit. Check the case connector for green corrosion, bent pins and fluid wicking up the wires, then measure each solenoid at the connector. The step-by-step process is in our shift solenoid A and B code guide and our TCC solenoid P0740 diagnosis guide. If everything tests good electrically and the symptom remains, the valve body itself may be at fault; Transmission Digest describes a 1993 C1500 that kept starting in second after both the solenoids and the valve body were replaced, so confirm pressures before throwing parts at it.
This kit is listed for 1993-2005 GM 4L60E and 4L65E applications, including Silverado and Sierra pickups, Avalanche, Blazer and Camaro. GM revised the internal harness and the pressure switch arrangement more than once across those years, so one harness does not physically match every truck in that range. Before you order, compare your old harness connector, the solenoid layout and the clip positions to the photos on this page. If anything looks different, send us your year and VIN and we will confirm fitment. All 4L60E and 4L65E parts are on the 4L60E collection page.
If the valve body is badly worn, it can make more sense to replace it complete, for example the 4L60E valve body for 2001-2002 units.
| Transmission | |
| Years | |
| Solenoids | |
| Harness | |
| Condition |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Yes, the listing covers 4L60E and 4L65E units from 1993-2005. Because GM changed the harness and pressure switch layout during that span, compare your old harness to the photos or send us your year and VIN before ordering.
On older trucks it often is. Heat makes the harness insulation brittle, and a cracked wire or loose terminal sets the same codes as a bad solenoid. Replacing both in one pan drop removes the guesswork.
Yes. The solenoids and harness are new aftermarket replacements.

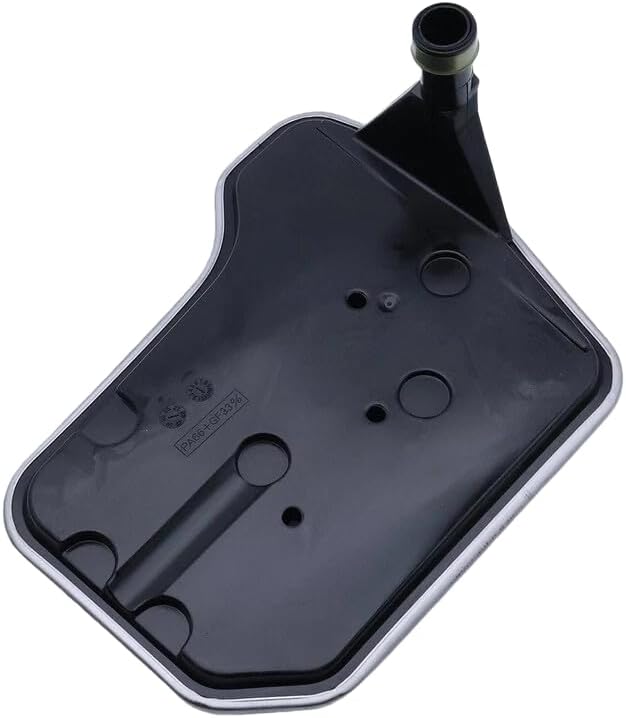

At minimum a new filter and pan gasket. If the fluid is burnt or the valve body shows bore wear, plan for a valve body or rebuild instead of solenoids alone.
The computer is still using adaptive values learned with the old parts. Clear the codes and run the adaptive shift relearn with a scan tool, then drive it through several full shift cycles.
