Reads and clears transmission, ABS, SRS and engine faults on VW, Audi, Skoda and Seat up to 2023, plus throttle, oil, EPB and battery resets.

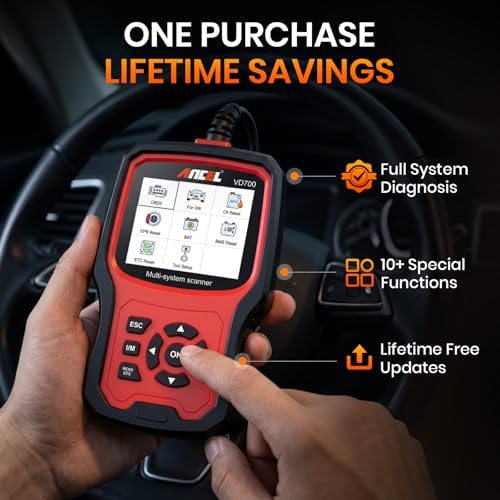

A flashing gear indicator, a DSG that will not leave neutral, or a check engine light after a rough shift sends most VW and Audi owners to a parts store reader that shows one generic code, or nothing at all, because the fault lives in the transmission module. The ANCEL VD700 is a handheld scanner built for the Volkswagen Group. It connects to the individual modules on VW, Audi, Skoda and Seat cars with the 16-pin port, so it can read and clear the transmission controller's own faults and show its live data, along with ABS, SRS, ESP, steering angle, TPMS, immobilizer and battery systems.
ANCEL describes the VD700 as an upgraded VD500 that runs all-system diagnosis on VAG vehicles, including the transmission, and automatically identifies the vehicle. On a DSG that matters because the mechatronic unit stores its own fault memory. A pressure fault, a clutch temperature warning or a speed sensor implausibility is logged there by module and code. Reading it directly tells you whether you are chasing a sensor, a wiring fault or a hydraulic problem before you spend money on parts. After the repair, you clear the code and confirm on a test drive that it stays clear.
On non-VAG cars sold in the US after 1996, ANCEL limits it to the engine system and the standard OBD modes: codes, definitions, live data, freeze frame, readiness, EVAP test and VIN.
Read the transmission module first, write the codes down, then check fluid level and condition. Transmission Digest points out that DSG wet-clutch fluid does lubrication, clutch cooling and hydraulic work at the same time, so old or contaminated fluid causes symptoms that look like hardware failure. If a pressure code points at the hydraulic side, follow our DSG pressure testing guide. If the box is running hot or setting temperature faults, the DSG overheating guide covers causes and fixes.

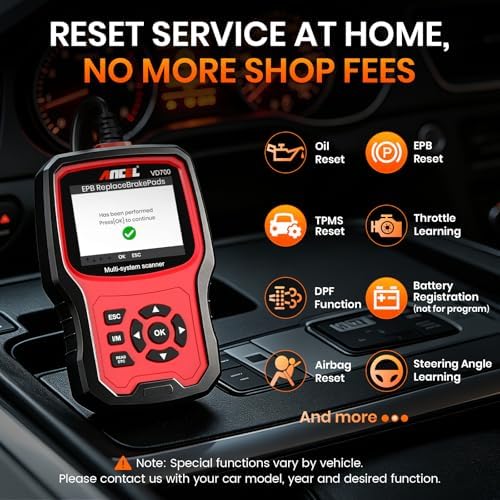

Be clear on its limits before you buy. ANCEL's own function list covers throttle adaptation, brake pad reset, TPMS reset, steering angle learning, oil service reset, injector learning, battery registration and DPF reset. It does not list DSG transmission basic settings or clutch adaptation, and the listing excludes ABS bleeding, module coding and programming. It does not support battery-electric models. If your job ends with a clutch or mechatronic replacement that needs a basic setting, choose the DSG adaptation scan tool instead.
VW, Audi, Skoda and Seat with the 16-pin port through 2023, plus generic OBD-II on other 1996-up makes. Protocols listed by ANCEL are J1850 VPW and PWM, ISO 9141, KWP2000 and CAN, on 12 volts. It has a 2.8-inch color screen, 11 languages and free lifetime updates installed over USB from a Windows 7, 8, 10 or 11 PC; there is no macOS updater. Function availability varies by model and year. See every DSG part we stock on the DSG and S tronic collection page.
Owners usually pair it with a DQ250 DSG service kit: read and save any codes, do the fluid and filter service with the correct G 052 182 fluid, then clear the codes and road test. For the 7-speed S tronic, the DL501 service kit is the matching service.
| Brand | |
| Model | |
| Coverage | |
| Systems read | |
| Service functions | |
| Not supported | |
| Screen | |
| Updates |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
ANCEL does not list transmission basic settings or clutch adaptation among its functions. It reads and clears transmission codes and shows live data. For adaptation after a clutch or mechatronic job, use a tool that lists transmission adaptation.
Yes. It performs all-system diagnosis on VW, Audi, Skoda and Seat vehicles with the 16-pin port through 2023, including the transmission module. Function availability varies by model and year.
Only for the engine system and standard OBD-II functions on US vehicles from 1996 on, such as codes, live data, freeze frame and readiness.
Updates are free for the life of the tool and install over USB from a Windows 7, 8, 10 or 11 computer. There is no Mac updater.
No. Battery-electric vehicles are not supported.
