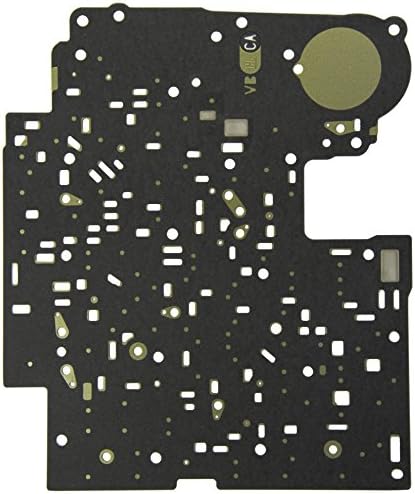

GM Genuine Parts 24241782 4L60E Valve Body Separator Plate with Gaskets

A 4L60E that slips on the 1-2, takes a moment to grab 3rd, or binds up on a shift is easy to blame on clutches, but a surprising number of those complaints come from oil leaking across the valve body separator plate. If you are already pulling the valve body on a Chevrolet or GMC truck, SUV or performance car with this transmission, the genuine GM 24241782 plate with its matching upper and lower gaskets is an inexpensive way to make sure the hydraulic side starts fresh.

How the separator plate works in the 4L60E

Think of the 4L60E valve body as two layers of oil passages: the worm tracks cast into the case above and the bores and channels in the valve body below. The separator plate is the steel wall between them, and the only way oil crosses from one layer to the other is through the holes punched in it. Hole size controls how fast an accumulator fills or a clutch applies, so the plate is as much a part of the shift calibration as any spring or valve. The two gaskets seal each face so that oil only moves where a hole lets it.

According to the listing, this revision uses a built-in screen in place of the small separate plastic filters used on early plates, and several shift feed holes were enlarged to the later GM sizing. In practice that means you are fitting the updated GM plate design rather than copying the original one.

Symptoms of a leaking plate or failed gaskets

• Slipping or soft 1-2 shift that gets worse as the fluid heats up
• Bind-up or harsh overlap on a shift when two circuits bleed into each other
• Erratic shift timing with clean electrical tests on the solenoids
• Low line pressure readings that do not follow the pressure control solenoid command (this is also where code P0748 investigations often end up when the solenoid itself tests good)
• Gasket material visibly torn, compressed thin or blued when the valve body comes off

Diagnosing it before you buy

Electrical problems come first because they are cheap to rule out: check the solenoid resistances at the case connector and inspect the internal harness, as covered in our 4L60E shift solenoid testing guide. If the solenoids are good, drop the valve body and inspect the old plate and gaskets. A plate with worn check-ball seats, or gaskets with breaks between passages, should be replaced. If the 3-4 clutch has burned, read our 3-4 clutch apply and AFL valve guide as well, because low feed pressure from a worn actuator feed limit valve can starve that circuit no matter how good the plate is.

Fitment

The listing fits this plate to the GM 4L60E valve body under OE number 24241782. Keep in mind that GM changed 4L60E plate patterns across the production run, with distinct versions generally grouped as 1993-94, 1995, 1996-06, the 2005 Corvette, 2007-08 and 2009-15. One plate does not cover all of them. Before you order, compare the number stamped on your old plate or lay the two side by side and check the screen location and feed holes. If you are not certain, send us your year and VIN and we will check it. For other years, see the full range of plates and valve bodies on the 4L60E transmission page; if your application calls for the bonded-gasket version, that is the GM 24241783 spacer plate.

Install notes

• The plate is about 12 x 10.4 inches; set it on a flat bench and confirm it is not bent before installing.
• Use the supplied gaskets, one on each face, with the holes lined up to the plate. Hold them in place with a couple of guide bolts while you set the assembly on the case.
• Load the check balls into the case before the plate goes on, and do not use sealer on the gaskets.
• Torque the valve body bolts from the center outward in stages. Overtightening distorts the casting and can create a new leak.
• Refill with Dexron VI, verify the level hot, and run the shift relearn.

While the valve body is out, it is the right time for a new filter and pan gasket; the 4L60E aluminum pan kit with filter and drain plug also makes future fluid changes easier. Rebuilding the whole unit? The 4L60E/4L65E overhaul gasket and seal kit covers the rest of the seals.

Does the GM 24241782 come with gaskets?

Yes. It includes the separator plate plus the upper and lower valve body gaskets, so you do not need a separate gasket set for this part of the job.

Does it fit my year 4L60E?

It fits the 4L60E applications that call for GM 24241782. GM used different plates across the 1993-2015 run, so match the number stamped on your old plate or send us your year and VIN to confirm before ordering.

Can I reuse my old separator plate gaskets?

No. Once compressed and soaked in hot fluid, the old gaskets will not reseal reliably and are a common source of cross-leaks. Always install new gaskets with the plate.

What else should I replace with the separator plate?

At minimum a new filter and pan gasket and fresh Dexron VI. If the solenoids are original or tested marginal, replace them while the valve body is out, and inspect the internal harness for heat damage.

Will a new plate fix a burned 3-4 clutch?

No. A new plate restores sealing between circuits, but burned clutches have to be replaced, and the cause, often low feed pressure or a worn valve body bore, has to be found and corrected or the new clutches will fail too.
