A firewall-mounted flexible dipstick that reads GM 700R4/4L60E/4L80E fluid level accurately and cleans up the engine bay on a swap.
Swapping a 700R4, 4L60E or 4L80E into a C10, a street rod or an LS-powered project usually kills the factory dipstick tube. Long-tube headers sit right where the rigid steel tube wants to run, and a tube bent to clear them rarely ends up reading the fluid level correctly. This flexible braided dipstick solves that: about 29.5 inches of stainless braided sleeve that you route wherever there is room, with a billet aluminum handle that bolts to the firewall so you can pull it without reaching past hot exhaust.
A dipstick is a simple part, but on the 4L60E family it is the only way you know whether the pump is being fed. The pump draws through the filter in the pan, and when the level is low the pickup pulls air on turns, hard stops and climbs. Air in the circuit means low and unstable line pressure, and low line pressure is what Sonnax identifies as the root cause behind most burnt 3-4 clutch packs, the failure this unit is known for. Too much fluid is a problem too: an overfilled unit lets the rotating parts whip the fluid into foam, which aerates the pump feed and can push fluid out the vent. A dipstick that reads true, from a spot you can actually reach, is cheap insurance for a transmission that costs real money to rebuild.
Check the level hot, with the engine idling, in Park on level ground. GM's owner procedure for the 4L60E is to get the fluid up to normal operating temperature (around 180 to 200 degrees F) by driving, then pull the stick, wipe it, reinsert it fully and read it again. On a new install, verify the marks once: drain and refill a known amount, run it through the gears, and see where the hot reading lands against the full line. If your shift quality is already off, work through our 4L60E common problems guide before assuming the level is the whole story.

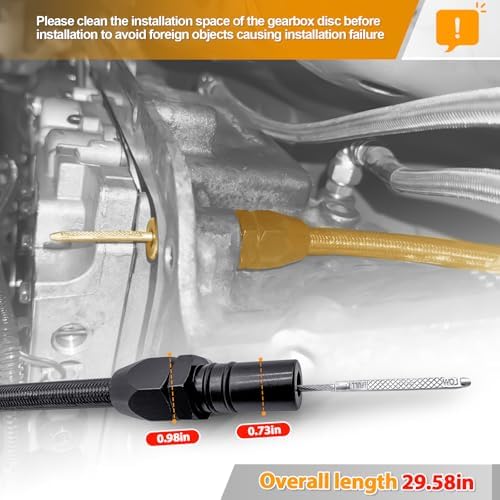

This dipstick fits GM 700R4, 4L60E and 4L80E transmissions and mounts at the firewall, so it suits engine swaps, custom builds and any truck where the stock tube was cut or bent. The braided line is about 29.5 inches long; measure the path from your case seat to the firewall around the headers before ordering, and keep the loop away from the exhaust. Browse the rest of our 4L60E parts for the matching hard parts on your build. If you are unsure which case you have, send us the transmission tag or year and VIN and we will confirm.
A swap is also the right moment to sort out cooling and mounting. A braided 6AN cooler line kit pairs well with this dipstick in a custom engine bay, and a solid billet transmission mount keeps the case from moving and loading the dipstick line.
| Fits | GM 700R4, 4L60E, 4L80E |
| Mount | Firewall mounted |
| Hose | Flexible stainless braided sleeve |
| Length | About 29.5 inches |
| Handle | Billet aluminum |
| Ships from | USA |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Yes. It is made for GM 700R4, 4L60E and 4L80E cases and mounts at the firewall. Measure your routing path from the case to the firewall against the roughly 29.5 inch length before you order.
The stick has both cold and hot markings, but the hot reading is the one to trust. Drive until the fluid is at operating temperature, idle in Park on level ground, wipe the stick, reinsert it fully and read it.
Clean the case seat, make sure both O-rings are fully seated, and run a thin bead of RTV around the seat. Most leaks on aftermarket dipsticks come from an O-ring that rolled during install.
Dexron VI is GM's current service fluid for the 700R4, 4L60E and 4L80E family. Use the supplied fill adapter tube to top off without spilling on the exhaust.
The braided sleeve lets you route it around headers, but keep the line clear of direct contact with the tubes and clamp it so it cannot vibrate into them.
