Honda Civic CVT Transmission Oil Cooler Kit 1.5T

The tenth-generation Honda Civic with the 1.5-liter turbo and CVT works its transmission fluid hard in traffic, on long grades and with a full car. When fluid temperature stays high the fluid breaks down, and owners start feeling a light-throttle judder, a slipping or rubber-band feel, or a car that drops power until it cools off. This kit adds a second stage of cooling for the 2016-2021 Civic 1.5T CVT. It is an ETL Performance kit, manufacturer part number 244003, with a tube-and-fin aluminum core and a thermostatic adapter so the extra cooling only comes in once the fluid is warm.

What an auxiliary cooler does on the Civic CVT

A belt-and-pulley CVT holds ratio by clamping a steel belt between two pulleys with hydraulic pressure. The fluid is doing three jobs at once: lubricating, carrying that clamping pressure, and providing the exact friction the belt needs against the pulley faces. Heat attacks all three. Hot fluid thins, and once it oxidizes the friction modifiers are spent, which is when belt slip and pulley wear speed up. Honda treats the temperature window as important enough that its own service bulletin for the 2016 Civic 1.5L CVT has the technician bring the fluid to 176 degrees F before checking a condition. This kit does not replace the factory heat exchanger. Per the listing, the adapter housing sandwiches at the factory cooler port and the added core sits in the airflow ahead of it, with the thermostat keeping cold fluid out of the extra loop in winter so it reaches operating temperature on time.

Symptoms that point to CVT heat

• Judder or shudder at light throttle, often between 20 and 40 mph, that gets worse as the drive goes on
• A droning, rubber-band feel where engine speed rises before the car responds
• Reduced power on long climbs or in summer traffic that clears after the car sits
• Dark fluid with a burnt smell at a service well before the Maintenance Minder calls for it
• Repeat judder complaints after a fluid change that only helped for a few thousand miles

How to confirm before you buy

Scan for stored transmission codes and check for software updates at a Honda dealer first; Honda issued CVT software and valve body updates on several Civic years, and a cooler will not fix a control problem. Check the fluid level hot using the HCF-2 procedure and look at the condition of what comes out. If the fluid is burnt and the symptoms track with heat, start with fresh fluid and add cooling. If the car slips cold, or the belt is already noisy, the internal parts are the problem. Our Honda CVT maintenance guide walks through the fluid side, and CVT limp mode causes covers the heat-protection logic that cuts power.

Fitment

This listing is for the 2016-2021 Honda Civic with the 1.5L turbocharged engine and CVT. That covers the sedan, coupe and hatchback built with that engine and transmission. It does not fit the 2.0L non-turbo Civic, the manual-only Si and Type R, or the 2022-up eleventh-generation car. The kit is direct fit with no cutting or drilling per the manufacturer. If you are not sure which engine your car has, send us the year and VIN before ordering. Browse the rest of our CVT parts on the CVT collection page.

Install notes

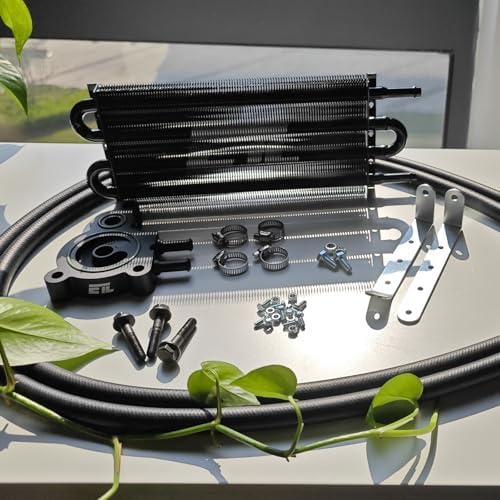

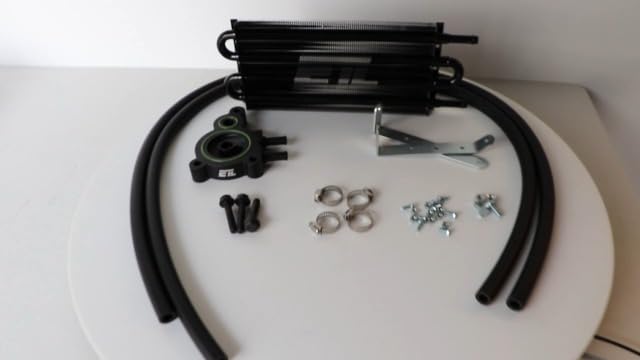

• Included: cooler core, thermostat adapter housing with O-rings, cooler hose, two steel mounting brackets, hose clamps and mounting hardware.
• Work on a cool engine. Expect to lose some CVT fluid when the factory port is opened, so plan to top up.
• Use only Honda HCF-2. A case like our HCF-2 fluid, 12 quarts covers the top-up plus the next change, or grab a single Honda HCF-2 quart.
• Route the hose clear of the exhaust and moving parts, tighten the clamps, and check for leaks at idle and after a test drive.
• Recheck the fluid level hot per the HCF-2 level procedure. An overfilled or underfilled CVT can damage the belt.
• If the pan is leaking or the drain plug is stripped, fix it now with the Civic CVT oil pan kit.

Will this fit my 2019 Civic EX with the CVT?

If the car has the 1.5L turbo and CVT, it is in the 2016-2021 range this kit is listed for. The 2.0L non-turbo Civic is a different engine and is not covered. Send us your VIN if you are unsure.

Does it replace the factory cooler?

No. It adds a second cooling stage. Per the listing, the thermostatic adapter mounts at the factory cooler port and the factory heat exchanger stays in place.

Will the CVT run too cold in winter?

The adapter has a built-in thermostat that keeps fluid out of the added core until it is warm, which is meant to prevent cold, thick fluid in winter driving.

What fluid do I use after installing it?

Honda Genuine HCF-2. Honda's service bulletin for the 2016 Civic 1.5L CVT warns that using the wrong fluid may damage the transmission. Check the level hot after the install.

Will a cooler fix a CVT that already judders?

Only if heat and worn-out fluid are the cause. Change the fluid, check for software updates, and confirm the level. If judder continues on fresh fluid, the belt, pulleys or valve body need attention.

Do I need to cut or drill anything?

The manufacturer lists the kit as direct fit with no cutting or drilling. Two brackets and the hardware to mount the core are included.
