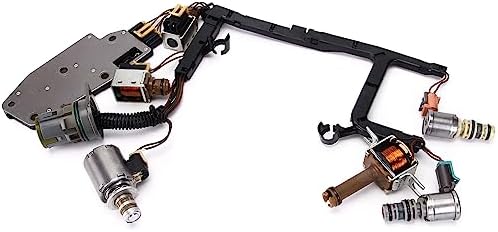

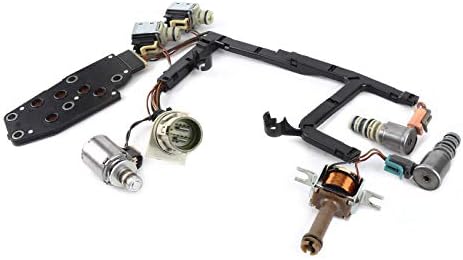

Eight-piece solenoid and harness set for 2003-2005 GM 4L60E and 4L65E valve bodies: EPC, shift, TCC, PWM and 3-2 solenoids in one swap.
If your 2003-2005 Silverado, Sierra, Tahoe, Yukon, Suburban, Express or other GM rear-drive truck with the 4L60E or 4L65E is starting in second, banging into gear, refusing to lock the converter, or throwing a string of solenoid codes such as P0748, P0753, P0758, P0785 or P0740, this eight-piece kit replaces the whole electrical side of the valve body at once. It includes the EPC pressure control solenoid, the shift solenoids, the TCC and TCC PWM solenoids, the 3-2 downshift solenoid and the internal wiring harness that runs to the case connector. On a truck that has a decade or more of heat cycles on it, the harness insulation and connector seals are often as tired as the solenoids, so replacing both together closes the door on intermittent faults.
The 4L60E is what ATRA's solenoid charts call a Type 1 two-solenoid unit. The 1-2 (A) and 2-3 (B) shift solenoids work as a pair: both on for first, A off and B on for second, both off for third, and A on with B off for fourth. Because of that table, a single sticking solenoid produces a very specific wrong gear, which makes this transmission easier to diagnose than most. The EPC solenoid sets line pressure and therefore shift firmness, the PWM solenoid controls how smoothly the converter clutch applies, and the 3-2 solenoid manages downshift timing. All of them are fed from the AFL circuit, so a weak electrical part and a worn hydraulic bore can look alike from the driver's seat.
Start at the case connector, not the pan. ATRA's resistance bulletin puts the 1-2 and 2-3 shift solenoids at 20-40 ohms and the pressure control solenoid at 3.5-8.0 ohms; a reading well outside those ranges confirms a bad part. Also inspect the connector pins and the crimps at the case plug, because ATRA documented poor terminal crimps setting P0740, P0753, P0758, P0785 and P1860 at the same time on otherwise healthy units. If every circuit tests good and the shift complaint remains, vacuum test the valve body before buying more electrical parts. Our shift solenoid A and B code guide walks through reading the gear table against scan data, and the P0748 pressure control guide covers EPC diagnosis.
This kit is built for 2003-2005 GM 4L60E and 4L65E transmissions with the standard case connector. GM changed the internal harness and connector layout for 2003, so a 1993-2002 truck needs a different kit; if yours is an earlier unit, see the 1993-2002 5-piece solenoid kit. Running changes also continued after 2005, so compare the harness routing and the solenoid styles on your valve body with this kit, or send us your year, model and VIN before ordering. Every 4L60E part we stock is on the 4L60E parts page.
Drain and drop the pan, pull the filter and unplug the harness at the case connector and at each solenoid. The shift solenoids come out after their retaining clips; the others are bolted or bracketed. Lube each new O-ring with ATF, seat every solenoid fully in its bore, and route the new harness exactly the way the old one ran so nothing rubs the pan or the filter. Because the pan is already down, this is the right time to fit a new filter and pan gasket; the 2003-2005 kit with filter and pan gasket bundles them. If the valve body is off and the spacer plate gaskets are damaged, the GM 24241783 spacer plate with gaskets is the matching part. Refill with Dexron VI, clear codes, and road test while watching commanded gear against actual ratio.
| Fits | |
| Years | |
| Includes | |
| Piece count | |
| Connector | |
| Weight | |
| Warranty |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
No. This kit is for 2003-2005 4L60E and 4L65E units. GM changed the internal harness and connector layout for 2003, so a 1993-2002 truck needs the earlier-style kit.
Yes, the listing covers both the 4L60E and the 4L65E for 2003-2005. Compare the harness and solenoid styles on your valve body to the kit, or send us your VIN to confirm.
Heat-cracked harness insulation and loose terminal crimps can set the same solenoid codes as a failed solenoid. ATRA documented a single bad crimp setting several solenoid codes at once, so doing the harness with the solenoids removes the most common intermittent cause.
ATRA lists the 1-2 and 2-3 shift solenoids at 20-40 ohms and the pressure control solenoid at 3.5-8.0 ohms, measured at the case connector.
Refill with Dexron VI ATF, check the level hot, clear codes and road test through every gear.
