Nine-piece master solenoid kit for the GM 4L60E and 4L65E: shift A/B, TCC, 3-2 downshift, PWM and EPC solenoids for 1993-2005 units.

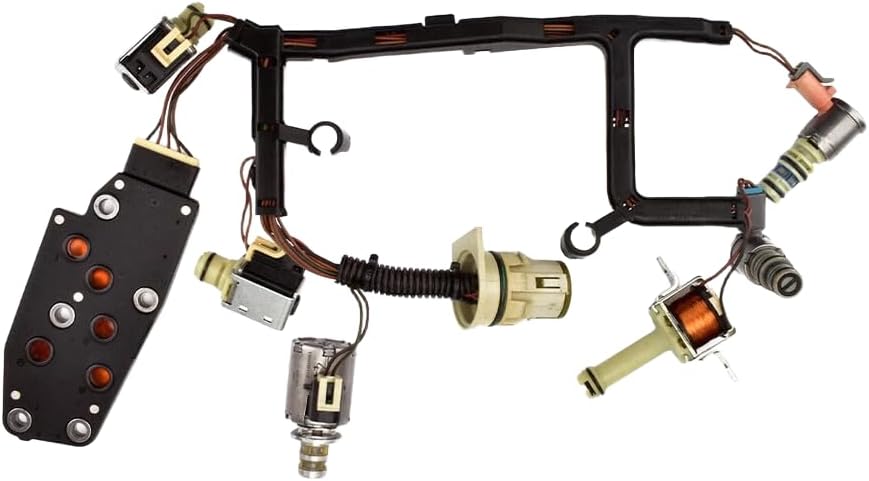

If your Silverado, Sierra, Tahoe, Camaro, Firebird or S-10 suddenly holds second gear, refuses to lock the converter, or lights the dash with a string of P07xx solenoid codes, the problem is usually on the electrical side of the valve body rather than inside the clutch packs. This nine-piece master kit covers the 1993-2005 GM 4L60E and its heavier-duty 4L65E sibling, giving you every solenoid the computer uses to shift and lock the converter in one box: shift solenoids A and B, the TCC on/off solenoid, the TCC PWM solenoid, the 3-2 downshift control solenoid and the EPC pressure control solenoid, rounded out to nine pieces.
The 4L60E is a two-shift-solenoid design. The PCM picks a gear by switching solenoids A and B in a fixed pattern: both on for first, A off and B on for second, both off for third, and A on with B off for fourth. Because the unit defaults to the both-off state, a dead shift circuit typically leaves the truck starting in second or stuck in third. All of these solenoids are fed regulated actuator feed limit (AFL) oil, which Sonnax puts at roughly 115 psi in this transmission. The EPC solenoid varies main line pressure for shift firmness, the TCC and PWM solenoids apply and modulate the converter clutch, and the 3-2 solenoid times the downshift when you step on it at cruise.
Measure before you throw parts at it. With the case connector unplugged you can read each solenoid through the pins; ATRA lists the A and B shift solenoids at 20-40 ohms and the pressure control solenoid at 3.5-8.0 ohms. Readings far outside those ranges point to a solenoid, while good readings with intermittent codes point to a wire, crimp or connector. ATRA has documented a single bad crimp on the shared feed circuit setting P0740, P0753, P0758 and P0785 all together, so inspect the harness first. Our 4L60E shift solenoid testing guide walks through the pin map and road test, and the TCC solenoid and P0740 guide covers lockup complaints.
The listing covers 1993-2005 4L60E and 4L65E units, including 1994-2002 Camaro and Firebird V6 and V8, 1995-2002 4.3L V6 trucks, 2001-2002 Avalanche, 1993-1996 Cadillac Fleetwood and 1994-1996 Buick wagons. GM changed TCC and pressure switch details within that span, so compare the connector shape and solenoid style on your valve body to the pieces in this kit, and read the identification tag on the driver side of the case to confirm you have a 4L60E or 4L65E. If anything looks different, send your year and VIN before ordering. Every year-specific kit, including 2003-up versions, is on the 4L60E parts page.

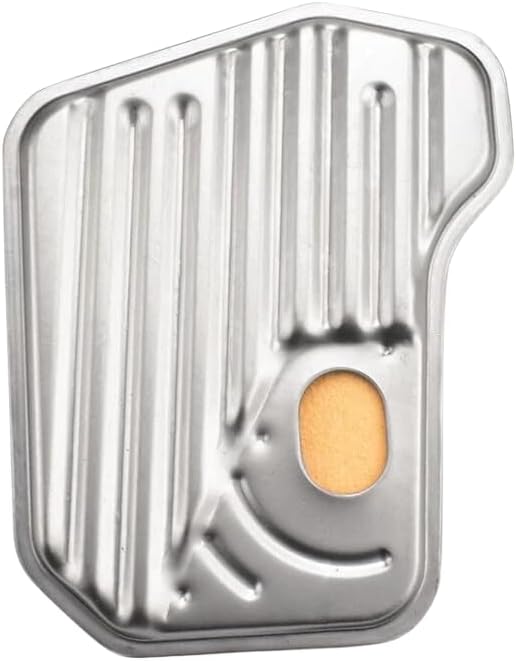

Drain and drop the pan, pull the filter and unplug the internal harness from the case pass-through. Shift solenoids A and B come out after removing their retaining clips; the EPC and 3-2 solenoids are held by brackets and bolts. Lube each new O-ring with clean ATF so it does not roll or tear going into the bore, torque the valve body bolts in sequence, and route the harness back into its original clips away from moving parts. Fit a new filter and gasket, refill with Dexron VI, clear codes and road test through all four gears and lockup, then let the PCM relearn shift adapts. If the harness insulation is cracked, consider the 1993-2002 solenoid kit that includes the harness, filter and gasket instead, and if you are doing a full rebuild at the same time, add the 4L60E/4L65E overhaul gasket and seal kit.
| Transmission | GM 4L60E, 4L65E |
| Years | 1993-2005 |
| Piece count | 9 (model 9PCS-4L60E 4L65E) |
| Solenoids covered | Shift A/B, TCC, TCC PWM, 3-2 downshift, EPC |
| Condition | New aftermarket, unboxed |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
Yes. The listing is for both the 4L60E and 4L65E built from 1993 through 2005. Check the case tag on the driver side to confirm which unit you have, and match the connector and solenoid style before installing.
Often, yes, if a shift solenoid or its circuit has failed, since the 4L60E falls back to a fixed gear when the PCM loses control of the shift solenoids. Test resistance and inspect the harness first; Transmission Digest has documented a second-gear start where new solenoids and even a replacement valve body did not cure it, so confirm the electrical diagnosis before buying.
ATRA lists the 4L60E A and B shift solenoids at 20-40 ohms and the pressure control solenoid at 3.5-8.0 ohms, measured at the case connector pins.
Refill with Dexron VI ATF, which is backward compatible with earlier Dexron specifications, and check the level hot with the engine running.
Clear the codes and drive through every gear and converter lockup. The PCM adapts shift timing over several drive cycles, or a scan tool can reset adapts right away.
