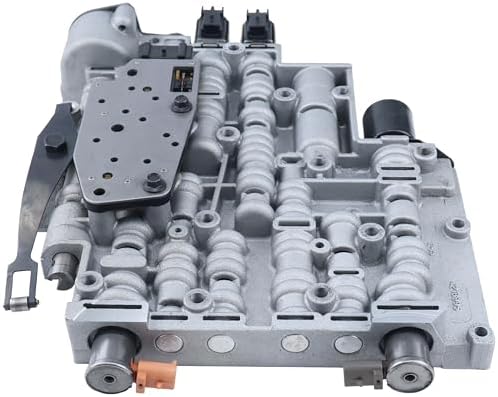

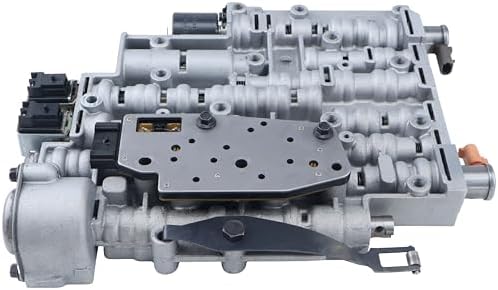

Bolt-on 4L60E valve body for 2003-2008 GM trucks and SUVs, pictured with shift, EPC and TCC solenoids, pressure switch manifold and detent spring.
If a 2003-2008 Silverado, Sierra, Tahoe, Suburban, or Yukon is shuddering under light throttle, banging into gear, or throwing a code and the shop already swapped solenoids without a fix, the valve body casting itself is usually the real problem. This is part number 74740PC, a dressed 4L60E valve body built for that 2003-2008 window and shipped as one unit: shift solenoids A and B, the EPC pressure control solenoid, the TCC solenoid, the pressure switch manifold, and the detent spring and roller are all mounted, so there is nothing to transfer off the old core.
The valve body is the hydraulic brain of the 4L60E. It takes line pressure from the pump and routes it through a set of precision bores and spool valves to apply each clutch and band on command, and because this is an electronic unit, the valve body also carries the solenoids the computer pulses to time every shift. The pressure switch manifold mounted on 74740PC reports which gear range the valve body has actually commanded back to the transmission control module, which is how the computer catches a stuck valve or a mis-shift instead of just guessing.
Our valve body wear and symptoms guide breaks down which specific bore is behind each of those complaints, including the TCC isolator wear that causes the shudder most owners blame on the converter itself.
Pull codes and check fluid condition first; dark, burnt fluid points toward the clutch packs rather than the valve body. If a scan tool or vacuum test is available, the bench walkthrough on our blog shows how a rebuilder isolates a worn bore from a healthy one before spending money on parts, which is worth doing if the solenoids have already been replaced once and the symptom returned.
74740PC is built for the 2003-2008 4L60E casting; the listing also references 4L65E and 4L70E, which share this valve body layout in those model years. The 1993-2002 castings use a different solenoid pack and a different internal connector, so they are not interchangeable with this unit. Check your build year against the casting before ordering, or send us the year, make, and VIN and we will confirm fit. The full 4L60E lineup by year is on the 4L60E parts page.
Drop the pan and pull the filter, then unplug the internal harness from each solenoid and from the pressure switch manifold before touching a bolt. The valve body bolts are different lengths, so lay them out in order as they come out. Disconnect the manual valve link, then lower the valve body straight down while keeping a hand on the separator plate so the checkballs stay seated in their pockets; check every checkball position against the old unit before the new one goes up. Torque the bolts in a spiral pattern from the center out to GM spec, reconnect the harness, and install a new filter and pan gasket so debris from the old core does not circulate into 74740PC. Refill with Dexron VI, clear adaptive learning with a scan tool, and road-test through every gear and into lockup before calling it done. A worn internal wiring harness is a common partner failure on these high-mile trucks, and if the clutches have never been touched, pairing this with a master rebuild kit addresses both halves of the problem at once.
| Transmission | GM 4L60E, 2003-2008 (listing also references 4L65E, 4L70E) |
| Part number | 74740PC |
| Assembly | Valve body with shift A/B, EPC and TCC solenoids, pressure switch manifold, detent spring |
| Quantity | 1 valve body |
Doing this repair right usually means replacing these at the same time. Same transmission, ships together.
It is the dressed 2003-2008 4L60E valve body assembly with the shift A/B, EPC, and TCC solenoids, the pressure switch manifold, and the detent spring and roller already mounted, built as a direct bolt-in.
If the code is from converter clutch slip caused by TCC regulator or isolator bore wear in the valve body, replacing the whole assembly fixes the hydraulic leak that causes it. If the TCC solenoid itself has failed electrically, it needs replacing regardless, and it is already included here.
No. Those years use a different solenoid pack and internal connector. This valve body is built for the 2003-2008 casting, which the listing also ties to 4L65E and 4L70E applications in those years.
No, but you do need to verify their positions against the old unit before installing the new one, since a checkball in the wrong bore will cause a mis-shift even with a good valve body.
A new filter and pan gasket at minimum, plus fresh Dexron VI. If the internal harness is original and the truck is high mileage, replace that too rather than reusing a brittle harness on a new valve body.
Not strictly, but clearing adaptive learning and road-testing through all gears gets the computer relearning shift timing faster than letting it happen passively over several drive cycles.
